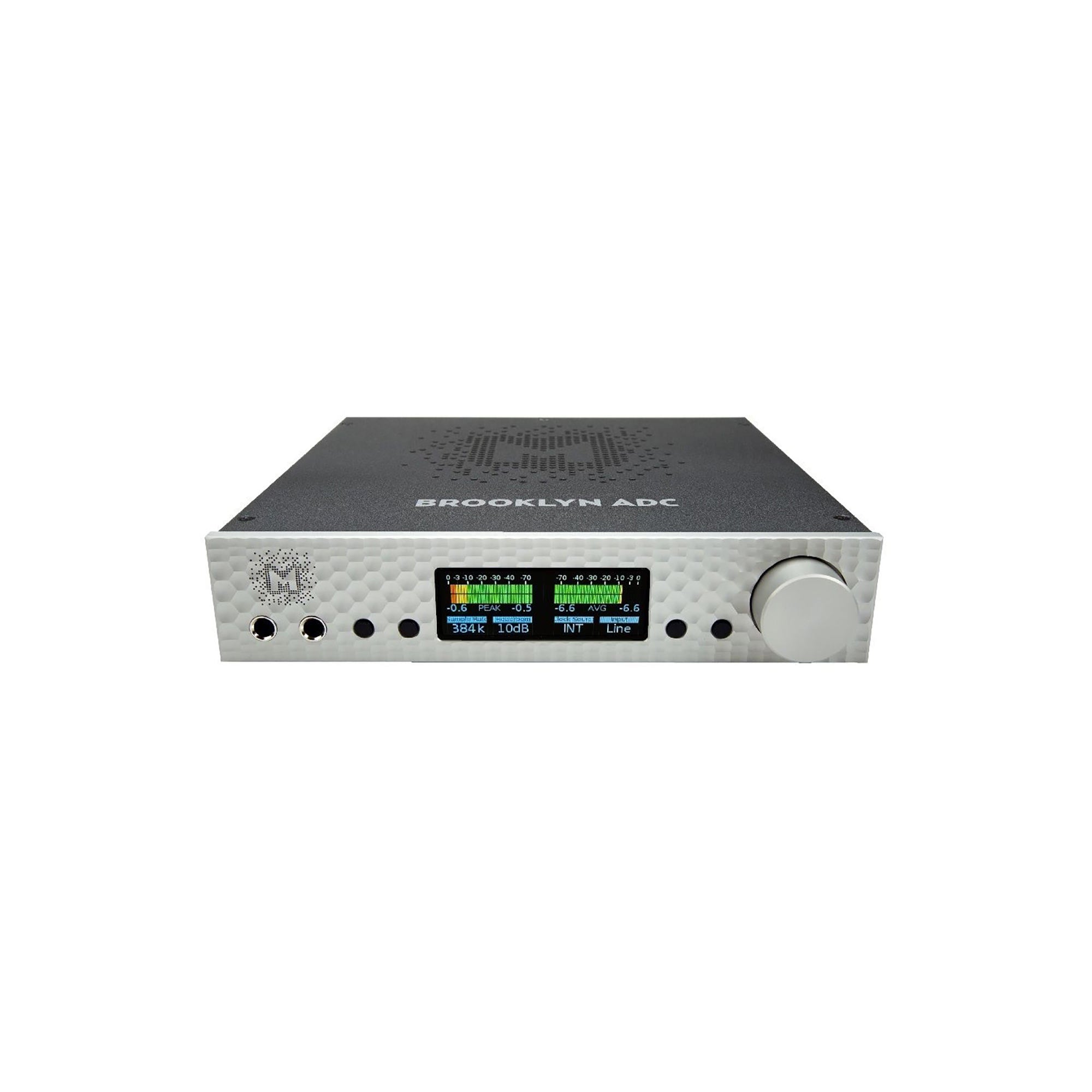

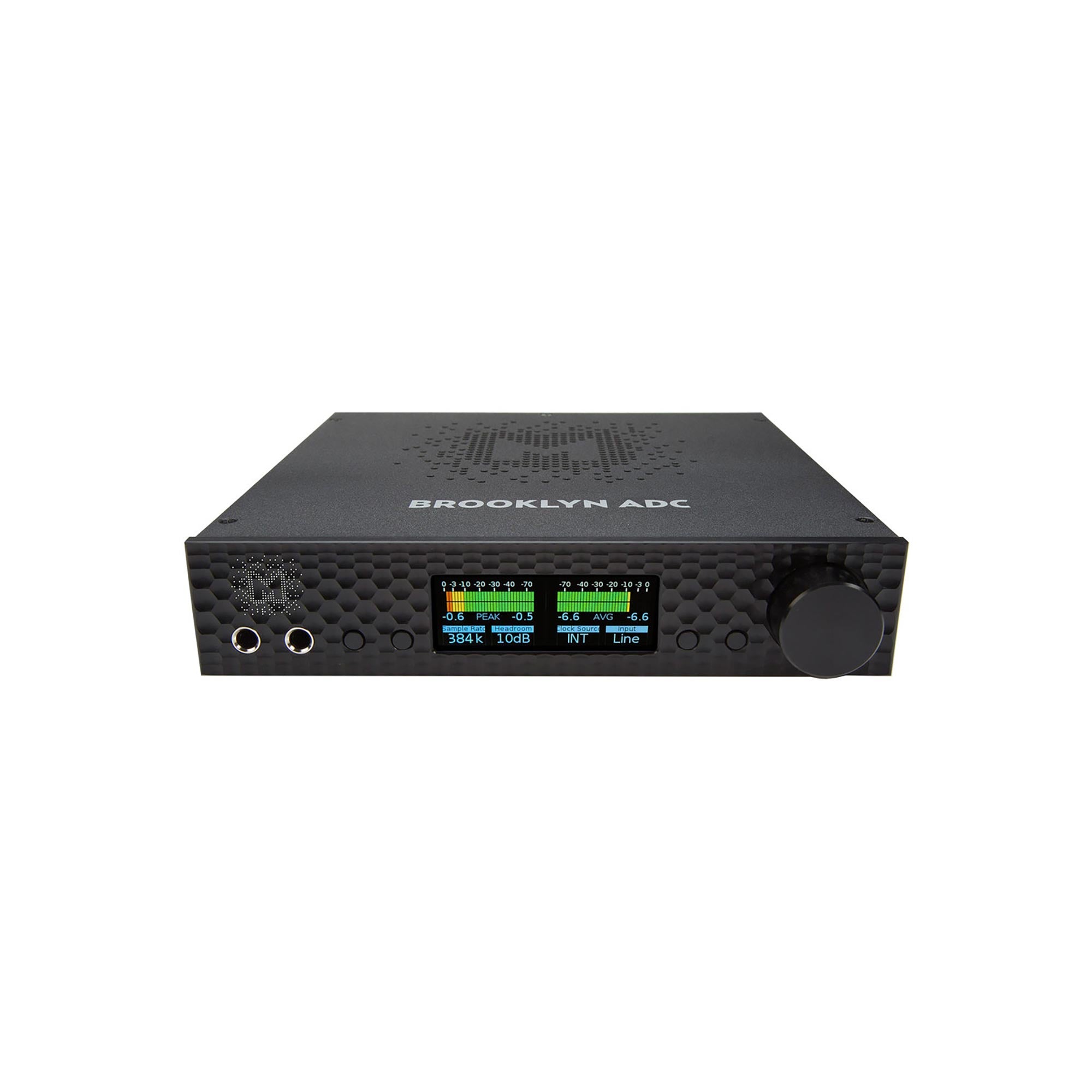

Mytek Brooklyn ADC

$1,995.00

BROOKLYN ADC is Mytek's best sounding ever new A/D converter designed specifically for the most demanding mastering and recording applications where transparency of conversion and accuracy of detail are of the highest importance.


Authorized Retailer

Free 1 or 2 Day

60-Day Returns

Ships Worldwide

Dual Mono Mastering

Dual mono ADC chipsets with fully balanced signal path and conversion are sampling audio at 12 MHz, with a choice of high resolution audio output formats: up to 384kHz /32 bit and DSD 256.

First of Its Kind

Brooklyn ADC is the first commercially available ADC to feature built in MQA Kernel (TM) to be used for mastering to MQA streaming format. Together with the Brooklyn DAC , there is a set of mastering converters capable of capturing the finest details of music like never before with practical workflow enabling easy mastering in a variety of Hi-Res formats, including MQA. Brooklyn ADC offers a choice of input flavours: electronic line level or passive nickel transformer as well as optional high performance mic or phono input.

Features

  • Conversion up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB Dynamic Range
  • Firmware upgradable via USB Control Panel
  • Built-in certified hardware MQA™ decoder

Specs

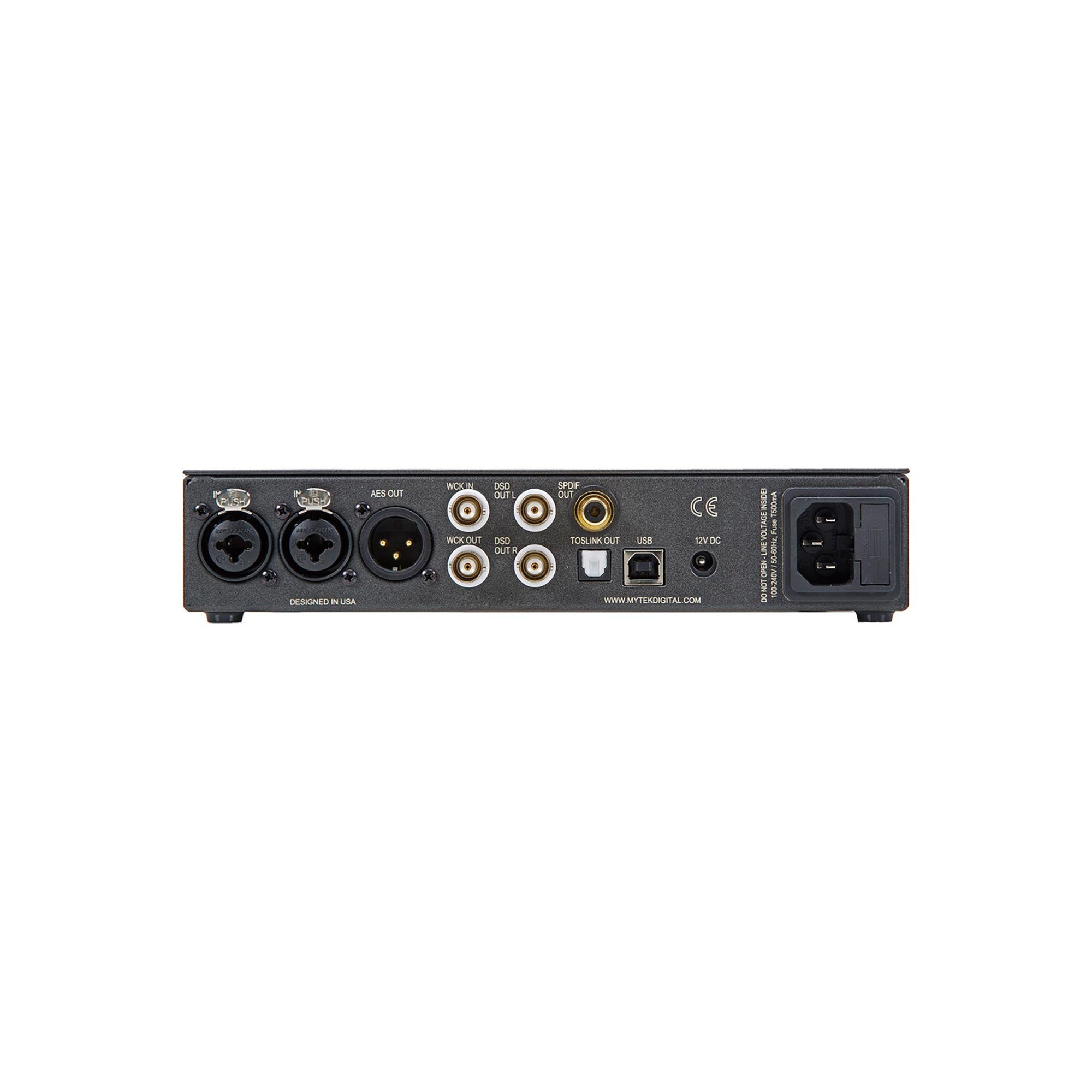

Inputs
Transparent line level (electronic) or passive nickel transformer with saturation control, Mic or phono input (optional plug in cards)

Outputs
AES, SPDIF, ADAT/Toslink (up to 192k, 24bit), SDIF DSD, USB2 Class2 (All formats up to 32 bit, no drivers required for Mac or Linux)

MQA Kernel
Built in MQA compliant filters and dithering

Power Supply
Worldwide 30W, 100-240V 50/60Hz, Optional 12V DC power input

Dimensions
8.5" x 8.5" x 1.74"

Weight
4lbs

Features

Built-in Attenuator
Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass

Built-in Preamp
Line level input or phono MM, MC input, relay controlled

Remote
Included, universal remote capable

Warranty
2 Years

Mytek

About Mytek

Mytek began building consumer-oriented DACs in 2011, and now boasts a full line of home hi-fi products named for New York boroughs and landmarks, like the flagship Empire Streamer DAC, and new all-in-one Brooklyn Bridge II Roon Core. Mytek designs their DACs to a strictly neutral reference, such that the signal on the recording is passed through as accurately as possible to the downstream equipment.
