Our Take
The SRM-500T is a natural starting point for a Lambda-series system if you want STAX's tube-output approach in a relatively compact desktop component. It replaces the SRM-006tS while retaining simple analog operation. Pair it with a suitable DAC or other line-level source and compatible earspeakers; it does not require a separate speaker amplifier.
Sound & Pairing
STAX characterizes the 500T as clear and transparent, with a warm, broad texture through the lower mids. In its SRM-500T review, AudioKey praises midrange tone and natural treble, while finding less deep-bass impact and large-scale drama than more ambitious amplifiers. That makes it especially worth considering for vocals, acoustic instruments and listeners who value an easy-flowing presentation over maximum impact.
The review used multiple earspeakers, including the SR-L700 MKII. Treat the sonic result as a combination of amplifier, source and headphone, not a promise that every electrostatic headphone will sound the same.
Connections & Everyday Use

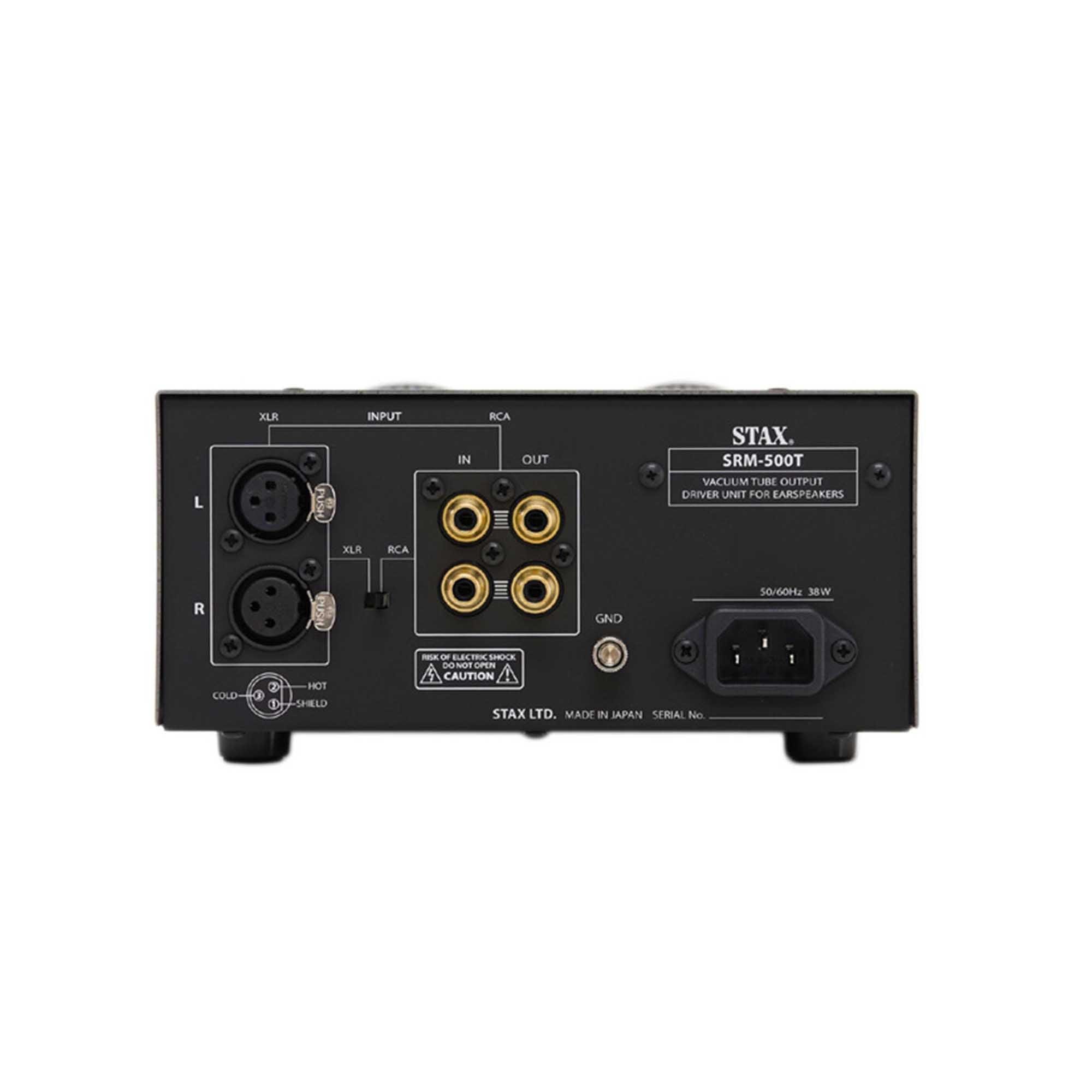

Use RCA or XLR, not both simultaneously. The rear selector configures the input type; the owner's manual explicitly instructs you to unplug the unused input cable. It is not intended as a two-source input switcher.

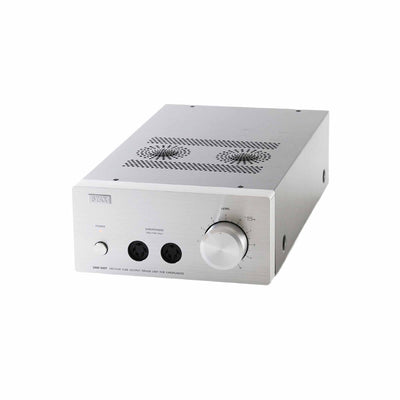

PARALLEL OUT passes the source signal through to another amplifier or driver unit. It is not a volume-controlled preamp output and cannot drive passive loudspeakers directly. The concentric front knob normally moves both channels together, but its sections can be adjusted independently to trim balance.
On startup the indicator flashes while the tube heaters warm, then becomes steady after approximately 30 seconds. Keep at least 5 cm clearance above the amplifier on a shelf and do not place headphones or other objects over its ventilation openings. High-voltage internal circuitry and tube servicing require qualified service personnel.
Specifications
| Circuit |
FET input + tube output hybrid DC amplification |
| Output tubes |
2 × 6FQ7 / 6CG7 |
| Headphone outputs |
2 × 5-pin STAX PRO-bias |
| Bias voltage |
580 V DC |
| Frequency response |
DC–90 kHz (+0/−3 dB with one SR-L500, owner's manual) |
| Gain |
60 dB |
| Harmonic distortion |
≤0.01% at 1 kHz / 100 V RMS output |
| Maximum output voltage |
300 V RMS at 1 kHz |
| Analog input |
RCA or XLR stereo; exclusive use |
| Input impedance |
50 kΩ RCA; 50 kΩ × 2 XLR |
| Other output |
RCA parallel pass-through |
| Power consumption |
38 W |
| Dimensions |
195 W × 102 H × 376 D mm, including protrusions |
| Weight |
3.4 kg / approximately 7.5 lb |
What's Included
- STAX SRM-500T driver unit with installed tubes
- Power cord
- RCA interconnect cable
- Owner's manual
