Grimm Audio MU1 Streamer/Roon Core
Grimm Audio MU1 brings network playback, Roon Server and precision digital processing together in a music source designed for an external DAC or Grimm LS1 loudspeaker system.
MU1 is a digital source, not an analog DAC or headphone amplifier. Unlike MU2, it requires a separate digital-to-analog conversion stage.
- Integrated Roon Server and Roon Ready endpoint.
- Tidal Connect and UPnP renderer support with current firmware.
- FPGA sample-rate conversion, digital volume control and low-jitter clocking.
- AES3, coaxial S/PDIF and optical digital inputs.
- Optional internal music storage, with USB and network storage support through Roon.
Our Take: Keep Your DAC, Upgrade the Digital Front End
MU1 is a particularly interesting choice when you already own a DAC you want to keep. It adds a dedicated music-library and streaming platform, then sends a carefully processed digital signal to that DAC. Its purpose is not to replace the DAC's analog output stage, but to improve the organization, control and delivery of music upstream.
In his MU1 review, Hans Beekhuyzen describes a relaxed presentation that still responds dynamically when the music demands it. This is useful listening context, not a promise of an identical change in every system. The receiving DAC, selected digital output and processing settings remain part of the result.
Grimm's dedicated processing is a reason to plan the connection carefully. Streaming from the internal Roon Server to another room's network endpoint does not send that music through MU1's local FPGA output processing.
Roon, Tidal Connect and UPnP
Roon Server runs inside MU1, so a separate server computer is not required for a typical Roon installation. A Roon license is required and is not included. Use the Roon Remote app on a phone, tablet or computer; subscriptions to services such as Tidal or Qobuz are separate.
For very large libraries, Grimm recommends an external Roon Server rather than expecting the internal computer to handle every catalog equally well. Its guidance identifies libraries above roughly 100,000 tracks as a reason to consider that approach. MU1 can remain the Roon Ready playback endpoint with its internal server disabled.
Current firmware also supports Tidal Connect and UPnP playback without Roon. Tidal requires its own subscription. MU1 is a UPnP renderer, not a UPnP music server: local-library playback by that route needs an appropriate server elsewhere on the network, plus a compatible control app. Keep the firmware current and use the linked manuals for setup.
Digital Connections and Storage

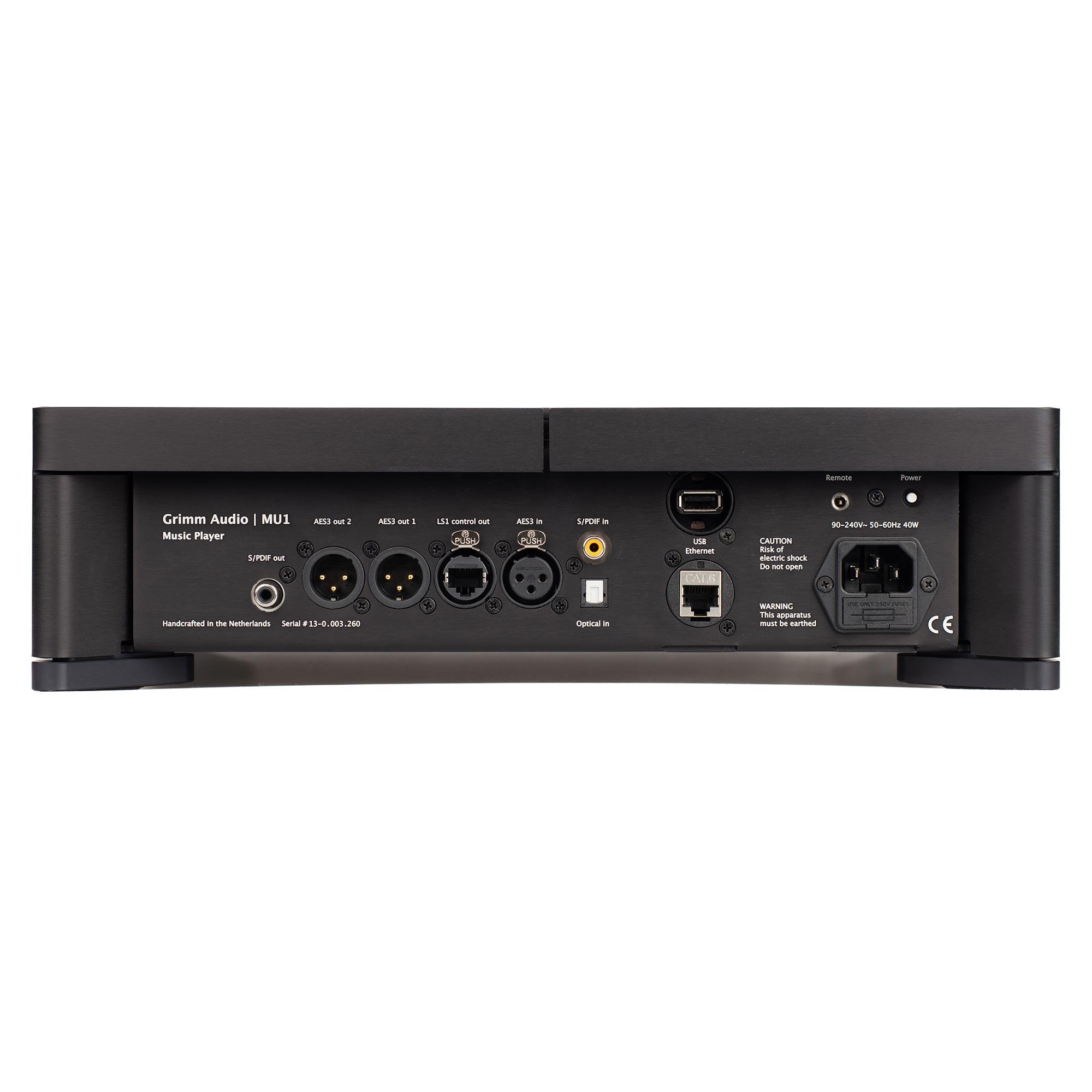

Use wired Ethernet for the network connection. AES3 and coaxial S/PDIF outputs feed compatible DACs; the dedicated LS1 connection integrates with Grimm's loudspeaker system. The three digital inputs let MU1 act as a hub for sources such as a CD transport. These are digital audio connections, not analog line inputs.
Choose the storage configuration above: no internal music storage, 2TB or 8TB. The no-storage configuration still supports streaming. USB drives and compatible NAS folders can hold a local Roon library. Keep a separate backup of your music and Roon database; an internal drive is not itself a backup.
MU1's six-channel surround routing requires a suitable multichannel digital system and configuration. It is not an HDMI home-theater receiver or a Dolby/DTS decoder.
Technical Specifications
| Type | Digital music player, streamer, Roon Server and digital processor; no analog DAC output |
|---|---|
| Digital audio inputs | AES3 on XLR, coaxial S/PDIF on RCA, Toslink optical |
| Digital outputs | 2 × AES3, coaxial S/PDIF, proprietary LS1 connection |
| Network / music storage | Wired Ethernet; USB storage and NAS support; optional internal SSD |
| File playback through Roon | PCM up to 8FS (352.8/384kHz), DSD up to DSD256 |
| Digital input support | PCM up to 192kHz; DoP for DSD64; no Dolby or DTS decoding |
| FPGA conversion | Selectable 2FS or 4FS output processing; high-rate PCM and DSD converted to suit the selected output rate |
| Display / controls | Color display, top rotary control, infrared remote and GRUI web interface |
| Dimensions / weight | 355 × 295 × 100mm (W × D × H), per hardware manual; 4.5kg |
| Power | 90–240V AC, 50/60Hz; 17W normal use, 50W maximum |
Input-file support is not a promise of native DSD output. Follow the software manual when selecting output rates for your DAC. Grimm's product overview lists an 85mm height, while its hardware manual specifies 100mm; allow the larger figure when planning clearance.
What's Included
- Grimm Audio MU1 in the selected storage configuration
- Infrared remote control and IR extension cable
- Mains power cord
Warranty coverage is subject to Grimm's terms: consult the hardware manual for registration requirements and exclusions to the advertised five-year limited coverage.
Video Review
Hans Beekhuyzen's MU1 review examines the hardware and listening experience. Recorded in 2022, it predates the addition of Tidal Connect, UPnP and the current Roon Ready implementation; use the current manuals for software setup.
Hans Beekhuyzen: Grimm Audio MU1 review
Manuals, Firmware and Setup
