Grimm Audio PW1 Solid State Phono Pre-Amplifier
Grimm Audio PW1 “Phono Wizard” is a solid-state phono preamplifier for moving-magnet and moving-coil cartridges, combining adjustable loading with an internally powered, compact design.
PW1 connects a turntable cartridge to a line-level audio system. It is not a headphone amplifier, speaker amplifier or digital converter.
- Separate MM and MC RCA inputs with selectable cartridge mode.
- RCA and XLR line outputs.

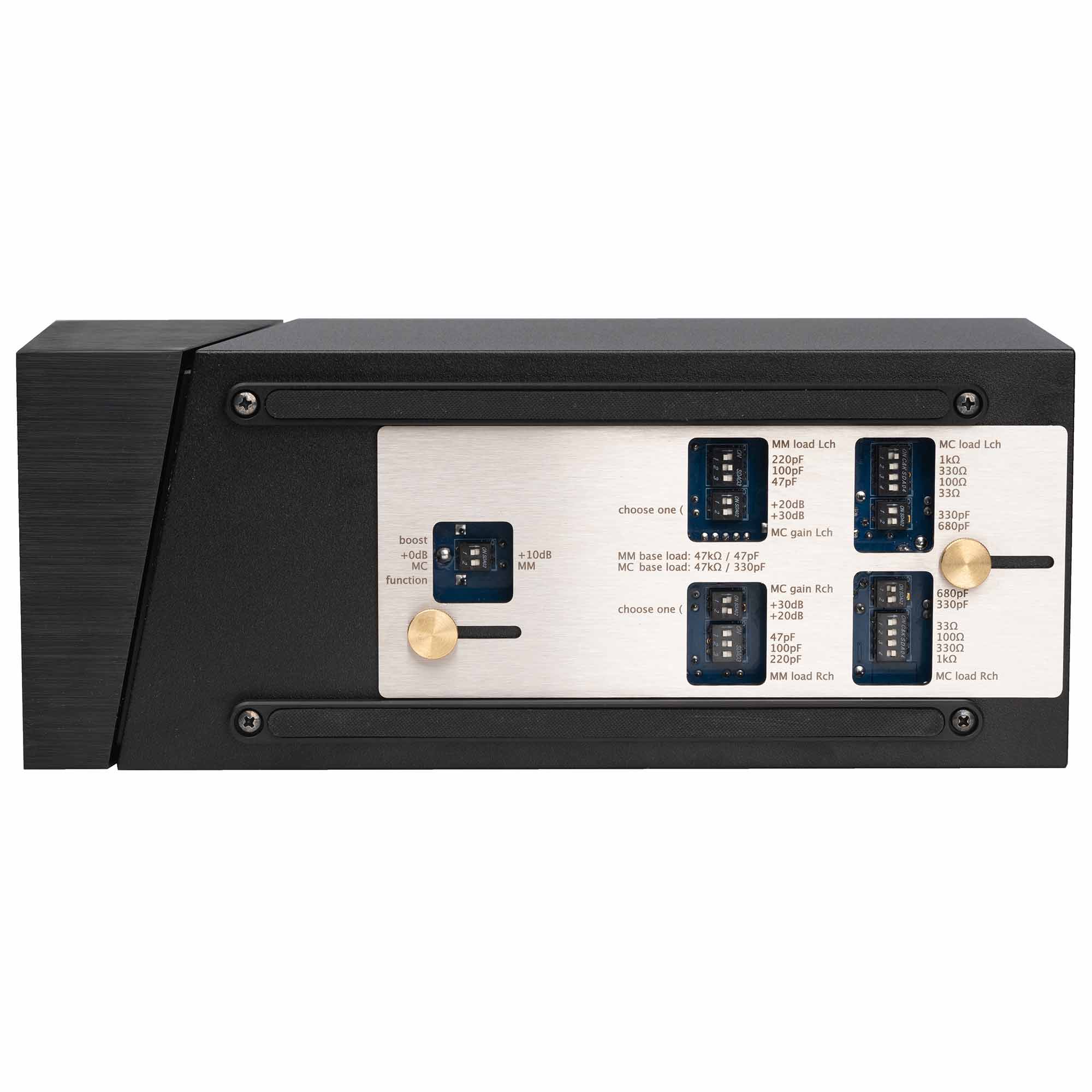

- Cartridge gain and loading adjustments beneath a sliding bottom panel.

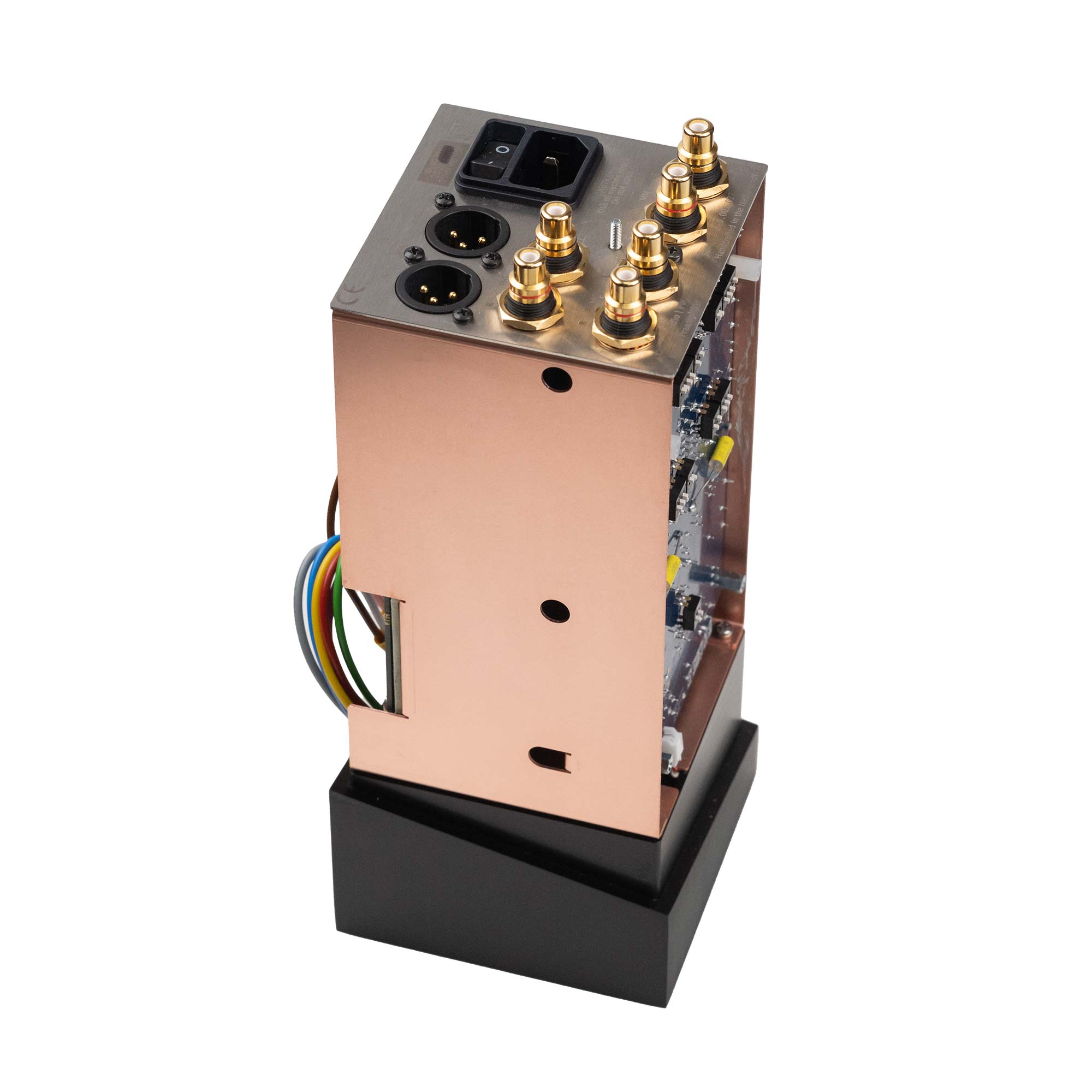

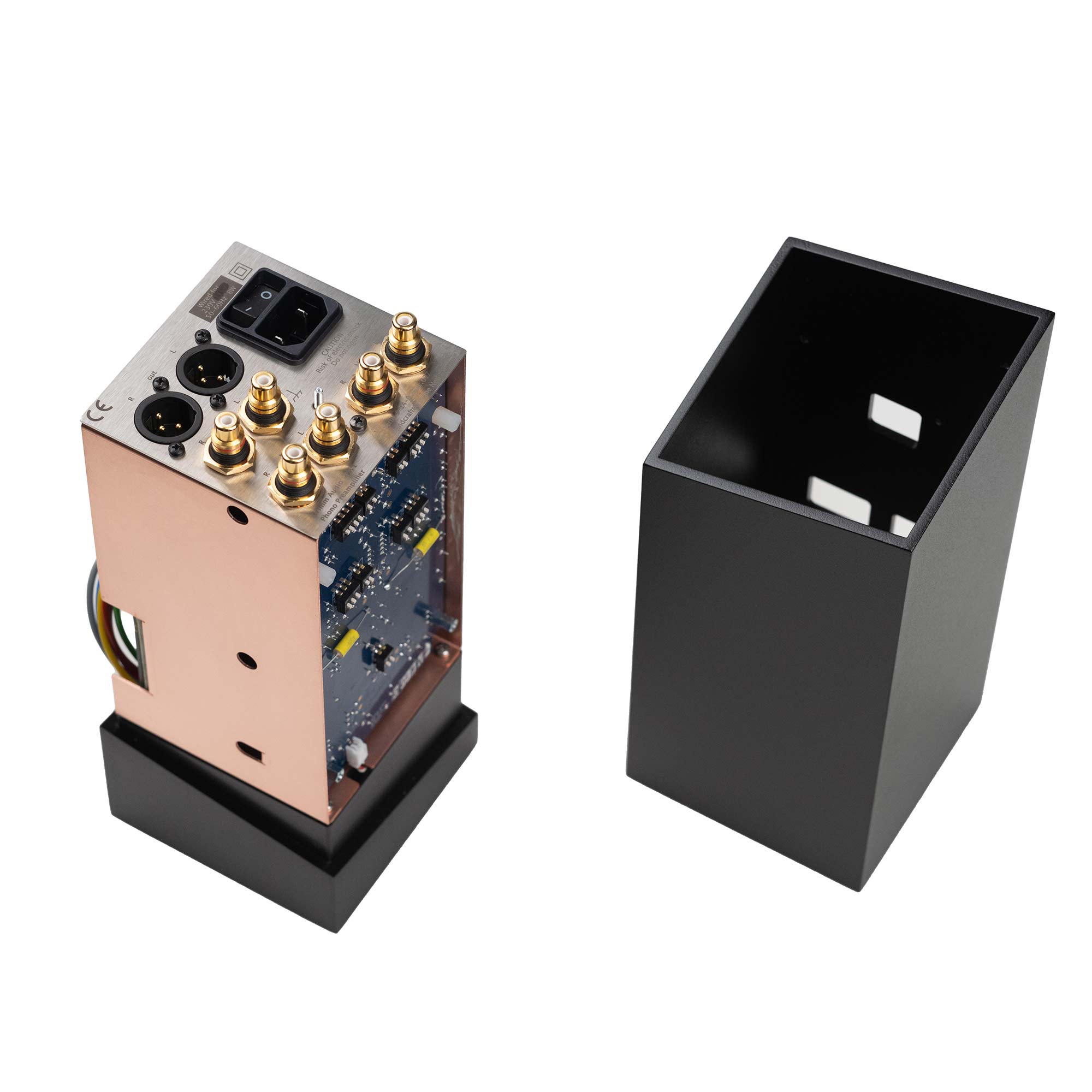

- Internal linear power supply and copper shielding, without an external power-supply box.
Our Take: A Phono Stage Built Around the Cartridge
PW1 is an appealing route for a vinyl system where the cartridge and turntable are already chosen carefully, and the next priority is extracting their character without adding a complicated front-panel interface. Its small footprint sits naturally beside a record player, while the loading and gain adjustments remain available when a cartridge changes.
Christiaan Punter's HiFi-Advice review describes a combination of fine resolution, fluid phrasing and tonal substance without excessive warmth. His account emphasizes a soundstage that follows the scale of the recording rather than making every record sound equally expansive. These are published listening impressions, not a promise that every cartridge will produce the same result.
The practical takeaway is to treat setup as part of the purchase. Correct cartridge alignment, loading, cable capacitance and gain matter more than simply choosing the highest gain setting.
MM and MC Setup Without Guesswork
Connect the turntable to the appropriate RCA input and select MM or MC mode beneath the sliding panel. Match both channels' switches. Follow your cartridge manufacturer's recommended load and the PW1 manual's setup sequence; cable capacitance contributes to the total MM load.
The nominal MM gain is 37dB. MC adds either 20dB or 30dB, and a separate 10dB boost is available. More gain is not automatically better: excessive gain can overload the next component on loud records. Do not engage both MC gain switches at once.
Use either the RCA or XLR output pair to a line-level input on your preamplifier, integrated amplifier or headphone amplifier. Do not route it through a second phono stage. PW1 has no listening-volume control; volume is set downstream.
Technical Specifications
| Design | Solid-state MM/MC phono preamplifier with internal linear power supply |
|---|---|

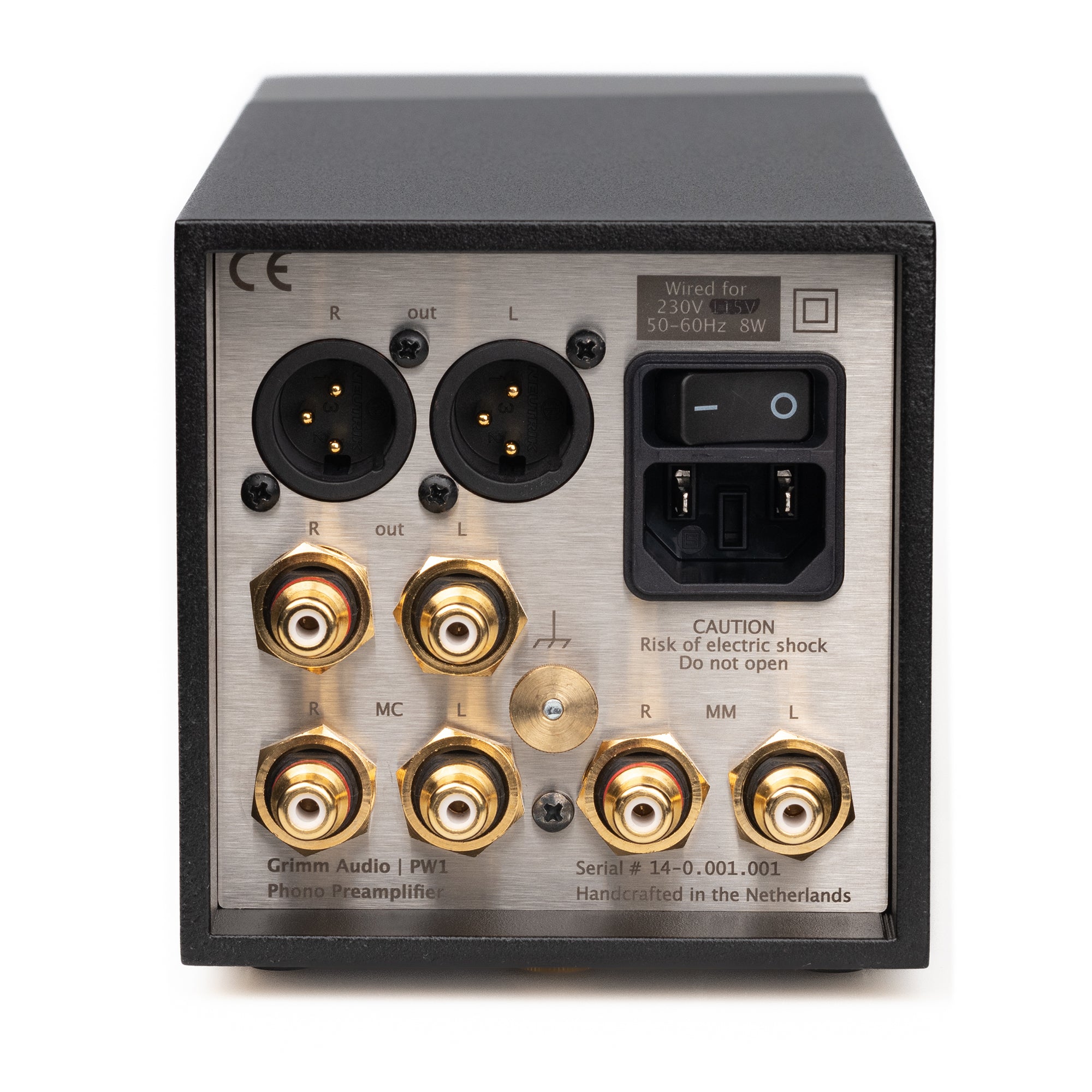

| Inputs / outputs | Separate MM and MC stereo RCA inputs; stereo RCA and XLR outputs |
| Gain | MM: 37dB ±1dB; MC: MM gain +20 or +30dB; optional +10dB output boost |
| MM loading | 47kΩ; 47pF base capacitance, with 47/100/220pF switchable additions |
| MC loading | 47kΩ base resistance with 33/100/330Ω and 1kΩ parallel options; 330pF base capacitance with 330/680pF additions |
| RIAA accuracy | ±0.5dB, 20Hz–20kHz |
| Output impedance / recommended load | 100Ω; downstream input impedance greater than 10kΩ |
| Dimensions / weight | 100 × 100 × 250mm (W × H × D); 3.3kg |
| Mains | Internally set 100/115V or 230V, 50/60Hz; verify the unit's rear label |
Parallel resistance settings do not add arithmetically. Use the official manual for switch combinations, default settings and full measurement conditions.
What's Included
- Grimm Audio PW1 phono preamplifier
- Mains power cable
- Warranty card
Turntable, cartridge and audio interconnects are not included. Grimm's five-year limited warranty requires the original owner's registration as described in the warranty section of that manual.
Meet the Designer
In this English-language Alpha Audio interview, Peter van Willenswaard discusses his phono-stage design background and the thinking behind PW1.
Alpha Audio interviews Grimm PW1 designer Peter van Willenswaard
Manual and Cartridge Setup Resources
