Unlimited Resources at Your Fingertips

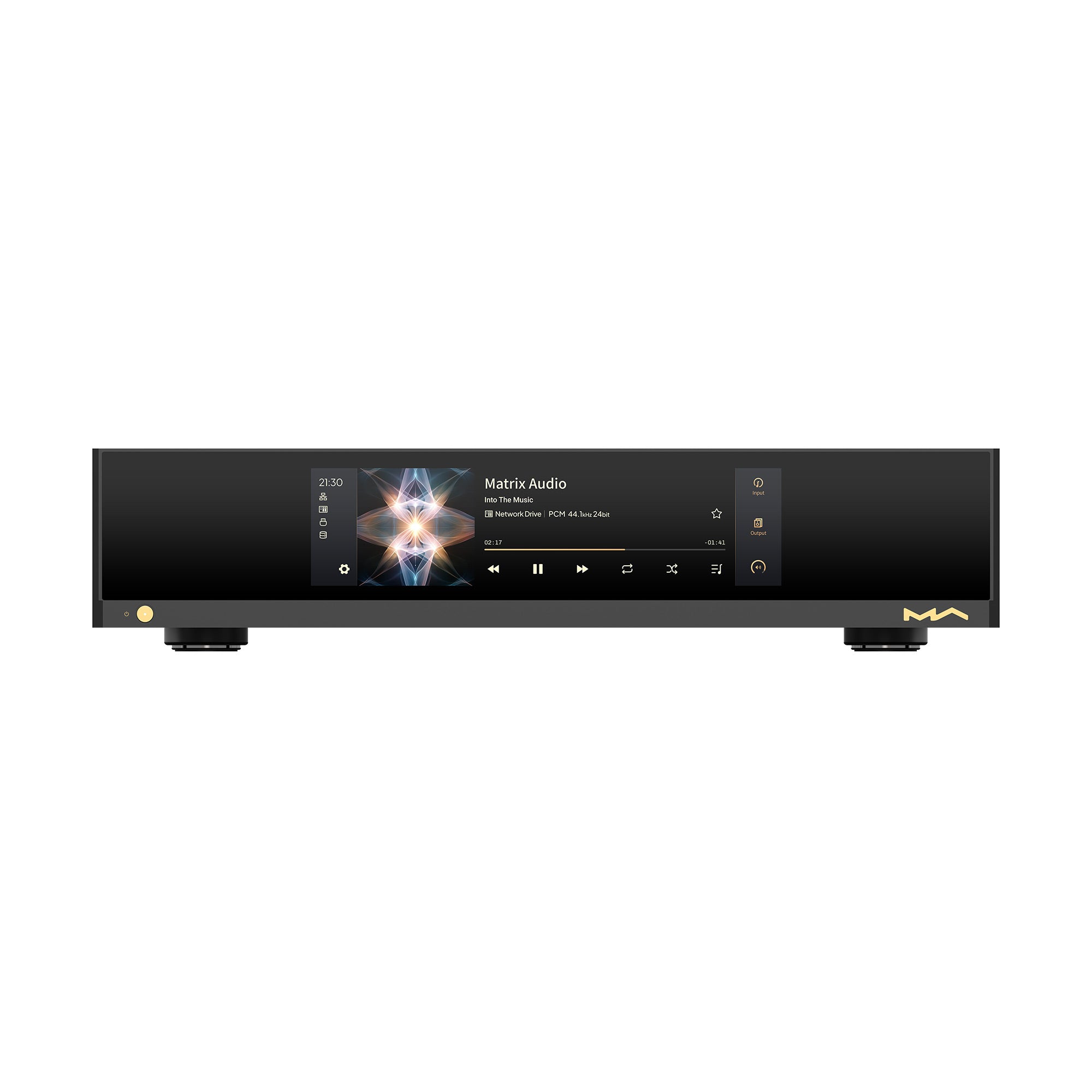

Built on the same Hi-Fi streaming hardware as the M-Series, the MD-1P features the same powerful core and large display. Access an extensive library of high-resolution music including TIDAL, Qobuz, HIGHRESAUDIO, and internet radio — all seamlessly integrated into the amplifier. A NAS drive on the network can be the source of your music library; even music in Dropbox can be played directly from the amplifier. In addition, streaming protocol support—including Roon, Audirvana, TIDAL Connect, Spotify Connect, AirPlay2, QPlay, and UPnP/DLNA—ensures comprehensive compatibility.
An NVMe SSD slot is located at the bottom of the chassis, allowing easy installation of an SSD. A specially designed, independent ultra-low-noise power supply ensures a quiet operating environment for the SSD — something that sets it apart from a conventional computer. With the SMB protocol, a computer on the same network can easily access the device’s storage, making it simple to manage a music library. Additionally, the device can function as a NAS, enabling another streamer on the same network to play the stored music seamlessly.
Plus, connect a USB CD drive and use the MA Remote App; you can convert a CD album into a digital audio file and save it to the device’s internal storage. This process creates a digital copy of your CD, combining the high-quality audio of the disc with flexible digital management. A user can enjoy the unique ritual of CD playback while transcending the limitations of physical media, turning a valuable music resource into a digital format for convenient listening. Let music become a constant, beautiful companion in your life.
MD-1P runs the continuously updated MA Player Hi-Fi Streaming OS and MA Remote App, it seamlessly integrates with either iOS or Android. Whether on a smartphone or a tablet, you can enjoy a smooth and intuitive user experience.
Mastering-grade D/A Chip
Equipped with the high-performance AK4493SEQ DAC chip featuring AKM's VELVETSOUND™ architecture, it supports up to 32-bit 768kHz PCM and 1-bit 24.58MHz DSD mastering-grade audio format. With a dynamic range of up to 120dB and ultra-low harmonic distortion of just 0.0002%, it faithfully reproduces each musical detail, delivering both high-resolution clarity and analog warmth.
The digital audio processing section features a dual femtosecond clock architecture with two custom-designed femtosecond clocks by Matrix Audio, providing a precise reference signal for 44.1kHz, 48kHz, and each multiple. Combined with a high-speed FPGA implementing Matrix Audio’s clock division and jitter-reduction algorithm, it minimizes phase jitter and enhances audio data accuracy, resulting in an “airy” sound.
Comprehensive I/O, Built In Preamp, Subwoofer Output & Dual-Speaker Output
Equipped with a preamp and subwoofer output port featuring synchronized volume control, it allows seamless integration with an external power amplifier. The low-frequency output precisely delivers audio signal below 150Hz, making it easier to connect an active subwoofer and extend the ultra-low-frequency range. The MD-1P goes further with a single low-frequency output, ensuring compatibility for a larger listening space requiring one subwoofer. Additionally, a trigger interface enables power synchronization with an active subwoofer, eliminating the need for manual power switching and enhancing convenience. Matrix Audio built an MM-cartridge phono preamp with a finely tuned low-noise RIAA curve. Simply connect your turntable’s phono output to the MD-1/MD-1P to effortlessly set up a complete vinyl playback system. Immerse yourself in the unique musical charm of a vinyl record, making it incredibly convenient for a listener exploring the vinyl experience.

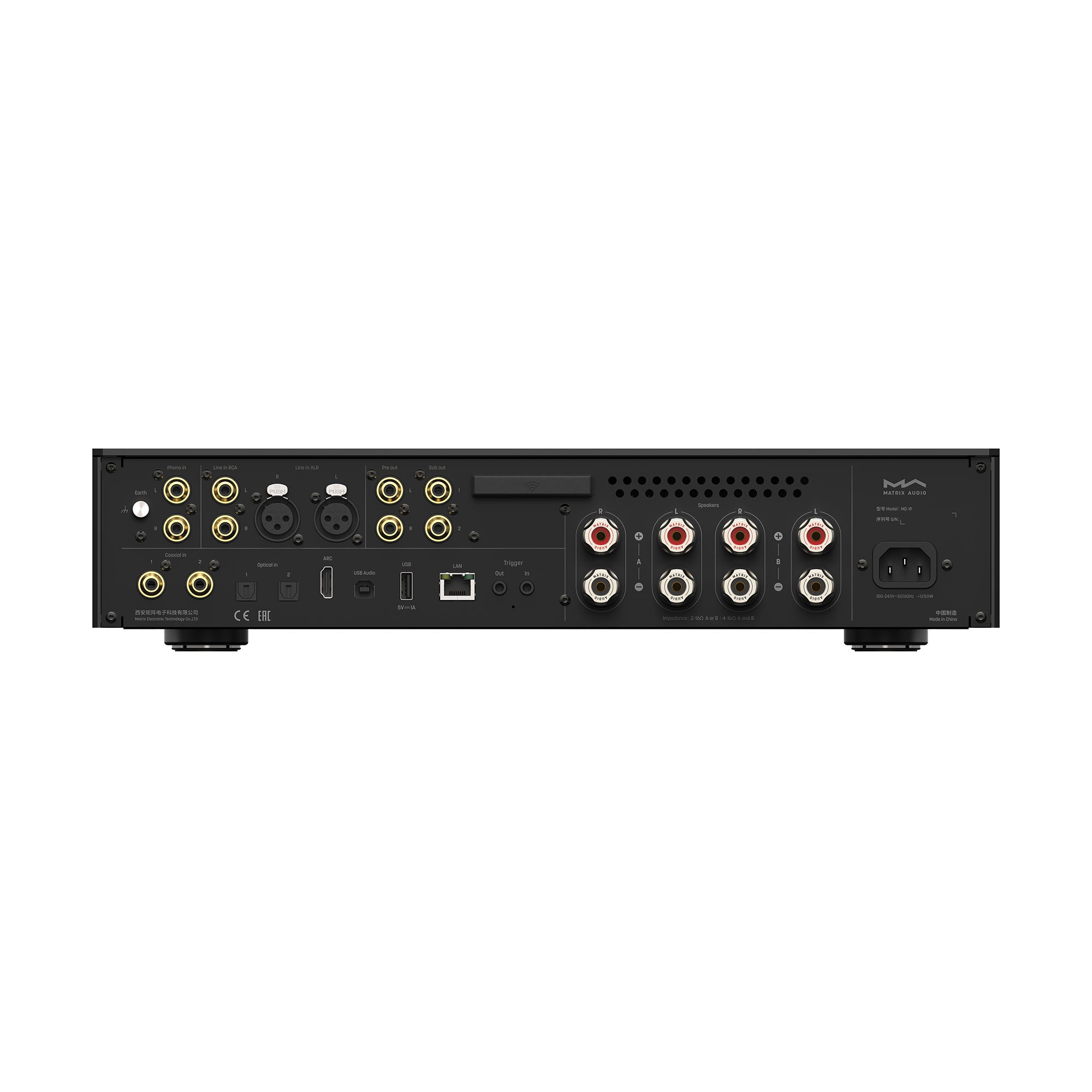

Equipped with an XLR balanced and RCA unbalanced line input, the MD-1P is compatible with nearly any audio device featuring an analog output. Whether it is professional studio gear or a common home audio device, integration is effortless. Additionally, the input can be set to Bypass Mode, allowing the unit to function as a pure power amplifier. This feature greatly enhances connectivity with an AV multi-channel system, making it ideal for Hi-Fi music listening and home-theater application.
Matrix Audio's custom-designed gold-plated solid pure copper speaker terminal ensures lower resistance and a secure grip on a speaker cable, preserving every detail of the audio signal. With two pairs of terminals, allowing two pairs of speakers to be connected at a time. A user can easily switch between each speaker via IR remote for quick A/B comparison, offering a more convenient Hi-Fi experience.
Finally, a 256-step high-precision digitally controlled analog preamp volume system, eliminates the sound degradation caused by mechanical wear in a traditional potentiometer. Supporting fine adjustment from –80dB to +12dB with 0.5dB steps, it optimizes the voltage output curve through an advanced algorithm to ensure perfect phase synchronization between the left and right channel, preserving soundstage integrity even at low volume. Additionally, a 12-step channel-balance compensation allows fine-tuning based on speaker placement and listening environment.
Comprehensive Digital Connectivity
Featuring up to four optical and four coaxial inputs, it accommodates multiple types of source device in a home entertainment setup, whether it is a set-top box, gaming console, or Blu-ray player. The HDMI ARC interface enables high-quality audio transmission from a TV, while the USB Audio input allows seamless computer-audio playback. This ensures that music from both a TV and a computer can be enjoyed through a high-fidelity sound system.
For situations where high-resolution streaming is not convenient, the MD-1P also offers HD Bluetooth playback. Featuring Bluetooth 5.0, it supports audio transmission up to 96kHz and multiple high-quality codecs including aptX, aptX HD, AAC, SBC, and LDAC. This ensures that audio streamed to your sound system maintains exceptional detail and overall listening quality, allowing you to enjoy high-fidelity music anytime, anywhere.
Gigabit Ethernet is undoubtedly the best way to connect the device, ensuring stable transmission of high-sampling-rate PCM and DSD audio. However, if wiring is inconvenient in your home setup and running a wired connection isn’t feasible, Wi-Fi 6 offers a simple and reliable alternative, allowing you to enjoy high-quality audio effortlessly.
