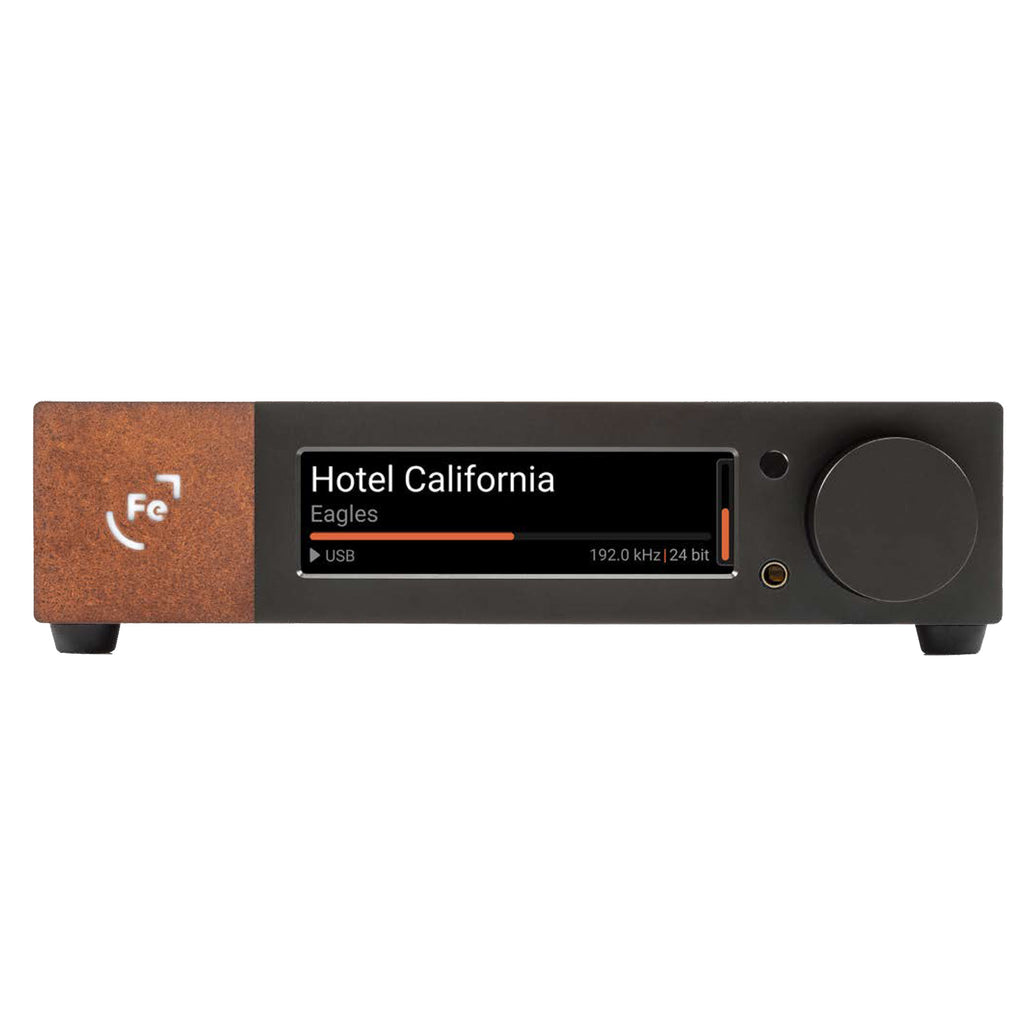

Ferrum WANDLA 2.0 DAC/Pre-Amp
Ferrum WANDLA 2.0 combines a balanced DAC and analog preamplifier with touchscreen control, extensive digital connectivity and Ferrum Streaming Control Technology.
- ESS ES9038PRO conversion with PCM up to 768 kHz/32-bit and native DSD512 over USB or I²S
- Balanced XLR and RCA line outputs, plus an analog RCA input
- Selectable analog or digital volume control and bypass operation
- FSCT playback control and track information with supported USB-connected hosts
- Included power supply; optional HYPSOS upgrade
Our Take
WANDLA makes sense when you want one compact control center for a computer, digital transport, television and analog source. Use its variable output with a power amplifier or active speakers, or connect it to a headphone amplifier. Its analog input lets an existing analog source share the same volume control and outputs.
Sound and System Matching
Ferrum describes WANDLA's tuning as balanced and transparent. Its selectable digital filters let you explore different reconstruction-filter presentations without replacing hardware. This is a DAC for listeners who want clarity and flexibility rather than built-in tube-style coloration. The Soundnews review below examines bass, midrange, treble, dynamics and spatial presentation in both headphone and speaker systems.

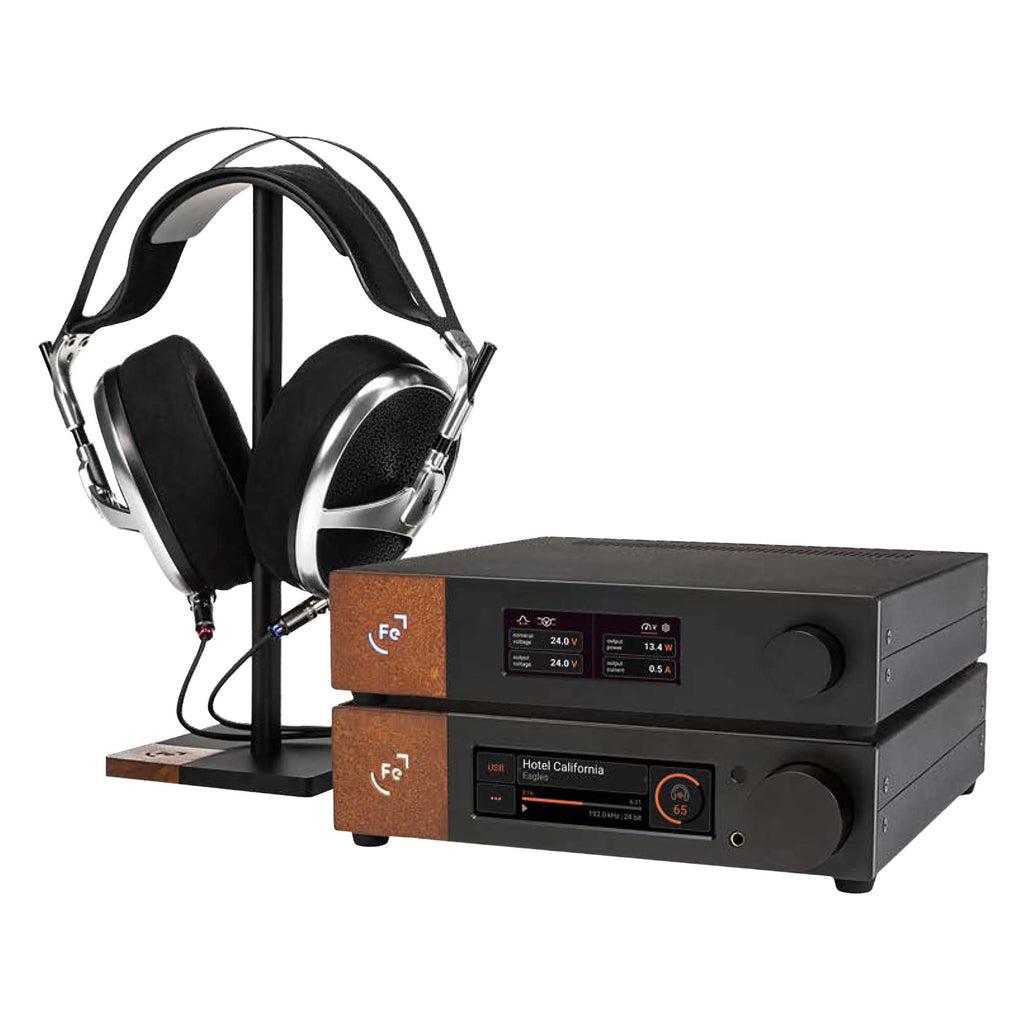

Pair it with the Ferrum OOR for headphone listening. The HYPSOS power supply and Ferrum Power Link cable are optional upgrades, not required to use the DAC.
What Firmware 2.0 Adds
Ferrum Streaming Control Technology brings play, pause and track navigation to WANDLA's touchscreen and remote, with artist, title and playback progress displayed on screen. Firmware 2.0 also adds computer/DAC volume synchronization, favorite-input selection and expanded I²S compatibility.
These features depend on the connected host and software. Ferrum specifies Windows, macOS and Volumio support when the necessary applications, services or plugins are installed; other platforms may offer partial support. WANDLA still needs a computer or streamer as its music source. It is not a standalone network streamer.
The firmware update is free for existing WANDLA-family owners through Ferrum Control. GoldenSound-specific processing is not included with the standard model simply by installing version 2.0.
Connections and Setup
Connect a computer through USB, a transport through AES/EBU or S/PDIF, or a compatible television through ARC with CEC. The I²S input is for compatible digital audio equipment, not a conventional HDMI video source. Check the manual and source pin configuration before connecting I²S.
Choose the appropriate output-voltage setting for your downstream amplifier. RED provides 4 V RMS balanced or 2 V RMS RCA; PRO provides up to 10 V RMS balanced or 5 V RMS RCA. Bypass mode sends a fixed-level signal, so use it only when volume is controlled elsewhere in the system.
Specifications
| DAC | ESS Sabre ES9038PRO |
|---|---|
| USB / I²S | PCM up to 768 kHz/32-bit; native DSD512; DoP256 |
| AES/EBU / coaxial S/PDIF | PCM up to 192 kHz/24-bit; DoP64 |
| Optical S/PDIF | PCM 96 kHz/24-bit guaranteed; higher rates up to 192 kHz/24-bit and DoP64 depend on source and cable |
| ARC | PCM up to 192 kHz/24-bit; CEC |
| Analog input | RCA; 47 kΩ; maximum 9.5 V RMS (2–3.5 V RMS recommended) |
| Line outputs | Balanced XLR and unbalanced RCA |
| Volume control | Analog with bypass option; digital for DAC operation |
| Output level | RED: 4 V RMS XLR / 2 V RMS RCA; PRO: 10 V RMS XLR / 5 V RMS RCA |
| Output impedance | 44 Ω XLR / 22 Ω RCA |
| Dynamic range | Digital: 122 dB A-weighted; analog: 127 dB A-weighted |
| DAC distortion | THD −121 dB; THD+N −115 dB unweighted |
| Power | Included 100–240 V AC to 24 V DC adapter; 10 W idle / 15 W maximum |
| Dimensions | 217 × 206 × 50 mm |
| Weight | 1.8 kg |
What's Included
- Ferrum WANDLA DAC/preamplifier
- AC/DC power adapter and power cord
- USB cable
- Remote control
- Quick guide
Guides & Support
The family manual covers several models; headphone-output features apply only to WANDLA HP. See Ferrum's firmware 2.0 guide for FSCT and official support for current firmware, drivers and downloads.
Videos
Ferrum: WANDLA 2.0 Streaming Control
Official explanation of the firmware and streaming-control features.
Soundnews: WANDLA DAC Review
A dedicated review of standard WANDLA hardware. Published before firmware 2.0, so its interface does not demonstrate the later FSCT features.
