Our Take
The MU2 brings source selection, streaming and volume control together. Connect it to a separate power amplifier or active loudspeakers. Unlike the digital-output MU1, it includes a DAC and analog outputs; it is not a loudspeaker power amplifier.
Digital and Analog Sources
Use the built-in Roon Server, connect to an external Roon Server as a Roon Ready endpoint, or play via Tidal Connect or UPnP. Local UPnP libraries require a separate server on your network.
Three digital inputs and two stereo analog inputs let you bring other sources into the system. XLR and RCA outputs provide connection options, and a headphone output is also included. Roon and streaming-service subscriptions are separate.
What Makes the Major DAC Different?
Grimm developed the MU2’s digital processing and discrete conversion hardware together. The Major DAC uses a 1.5-bit architecture, an 11th-order noise shaper and Pure Nyquist filtering, rather than relying on an off-the-shelf DAC chip as the complete conversion solution.
Those are engineering choices aimed at linearity and control of conversion noise. They are also the reason the MU2 is more than an MU1 with analog sockets added: its conversion, clocking and analog circuitry form one integrated design. Grimm’s Major DAC explanation goes into the technical details.
A Preamplifier, Not Just a Streaming Input
The signal from the DAC passes through a relay-based analog volume control. The two analog inputs join the system at the preamplifier stage, so a compatible analog source can share the same volume control and outputs. You can connect the MU2 directly to a separate power amplifier instead of placing another preamplifier between them.

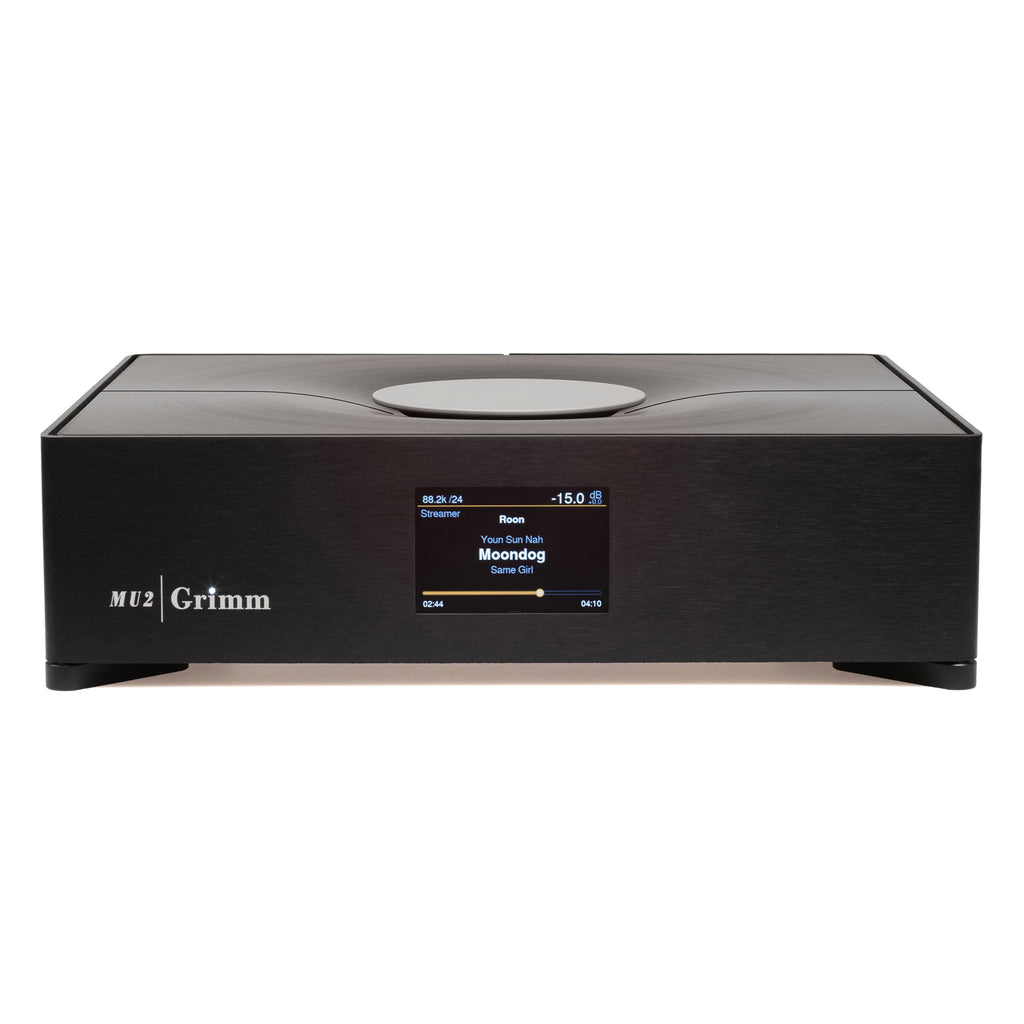

For everyday use, the top control knob handles volume and source selection, with the display showing the current state. The headphone connection is a 6.3 mm socket on the rear panel; line and headphone output selection is switchable. Plan cable access accordingly if you frequently change headphones.
The hardware guide specifies Ethernet networking and a USB port for external storage. Keep the unit ventilated and leave access to the top knob. The optional internal SSD is for music storage, not a requirement for using streamed music.
Specifications
| DAC |
Grimm FPGA-based discrete Major DAC |
| Digital inputs |
AES3 (XLR), S/PDIF coaxial (RCA) and Toslink; up to PCM 192 kHz or DSD64 via DoP |
| Analog inputs / outputs |
XLR and RCA |
| Headphone output |
Rear 6.3 mm; 40 mW into 30 Ω, 55 mW into 600 Ω |
| Networking |
Gigabit Ethernet |
| Local music |
USB, NAS or optional internal SSD |
| Dimensions (W × H × D) |
355 × 100 × 295 mm (hardware manual) |
| Warranty |
2-year limited warranty; eligible original purchasers can register with Grimm for up to 5 years. The built-in computer and SSD are excluded from the extension. |
What’s Included
- Grimm Audio MU2 in the selected storage configuration
- Power cord
- Grimm Audio infrared remote control
- Infrared remote extension cable
- Hardware manual and warranty extension card
New MU2 units include Grimm Audio’s handheld infrared remote as well as the separate infrared extension cable. Roon and paid music-service subscriptions are separate.
Manuals and Setup
Use a wired Ethernet connection.
Video Review
John Darko reviews the Grimm Audio MU2.
