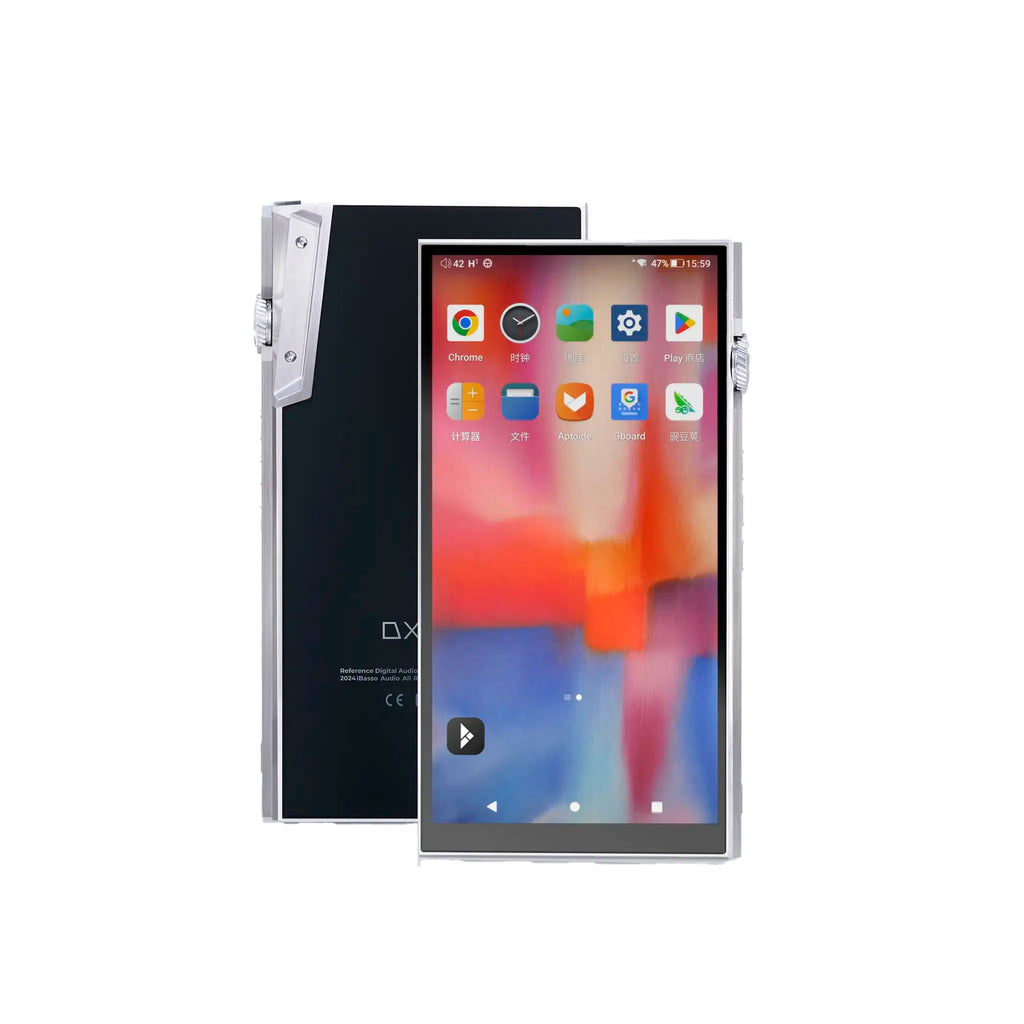

iBasso DX340 Flagship Digital Audio Player
$1,999.00
Want it next day?
Order by 5PM and select 1-Day shipping to receive next business day.
Ships in USA
30 Day Returns
Free 1 or 2 Day
Authorized Retailer
Introducing the iBasso DX340: a flagship, modular digital audio player built around a discrete PWM-DAC platform, Android 13, and a flexible AMP card system designed to scale from sensitive IEMs to full-size headphones.
Now available in Titanium.
- Discrete 16-cascade “8E” PWM-DAC architecture designed in-house for high precision and detail retrieval
- Patented dual-battery power system to isolate digital and analog power delivery
- Replaceable AMP card system for tuning output power and headphone matching
- High-resolution playback support up to PCM 32-bit/768kHz and Native DSD512
- FPGA-Master 3.0 for timing control and signal processing
DAC Architecture
Revolutionary Discrete 16-Cascade 8E PWM-DACs
The DX340 uses iBasso’s in-house discrete PWM-DAC design, built to deliver precise timing and a highly resolved presentation. This architecture focuses on clarity, micro-detail, and low-level nuance for demanding listeners.
Power & Modularity
Patented Dual-Battery Power System
With dedicated batteries for the digital section and the AMP card / analog section, the DX340 is designed to reduce interference between subsystems and maintain clean power delivery for audio performance.
Customizable Replaceable AMP Card System
iBasso’s swappable AMP cards let you tailor the DX340’s output stage to your headphones and preferred sound. The DX340 includes the AMP15 amplifier card in the box.
Digital Platform & Playback
Studio-Grade PCM and Native DSD Support
Enjoy high-resolution playback with support for PCM up to 32-bit/768kHz and Native DSD512, preserving the fine detail and dynamics in well-mastered recordings.
Advanced FPGA-Master 3.0 Audio System
FPGA-Master 3.0 supports timing accuracy and signal processing throughout the audio chain, helping maintain consistency across formats and playback modes.
Key Features
- Display: 6.0-inch AMOLED
- Chassis: 316 stainless steel
- Wireless: Bluetooth 5.0, Wi-Fi 802.11b/g/n/ac (2.4GHz/5GHz)
- Supported formats: APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, DST
- Battery: 3.8V 4000mAh (digital section) / 3.8V 2100mAh (AMP card section)

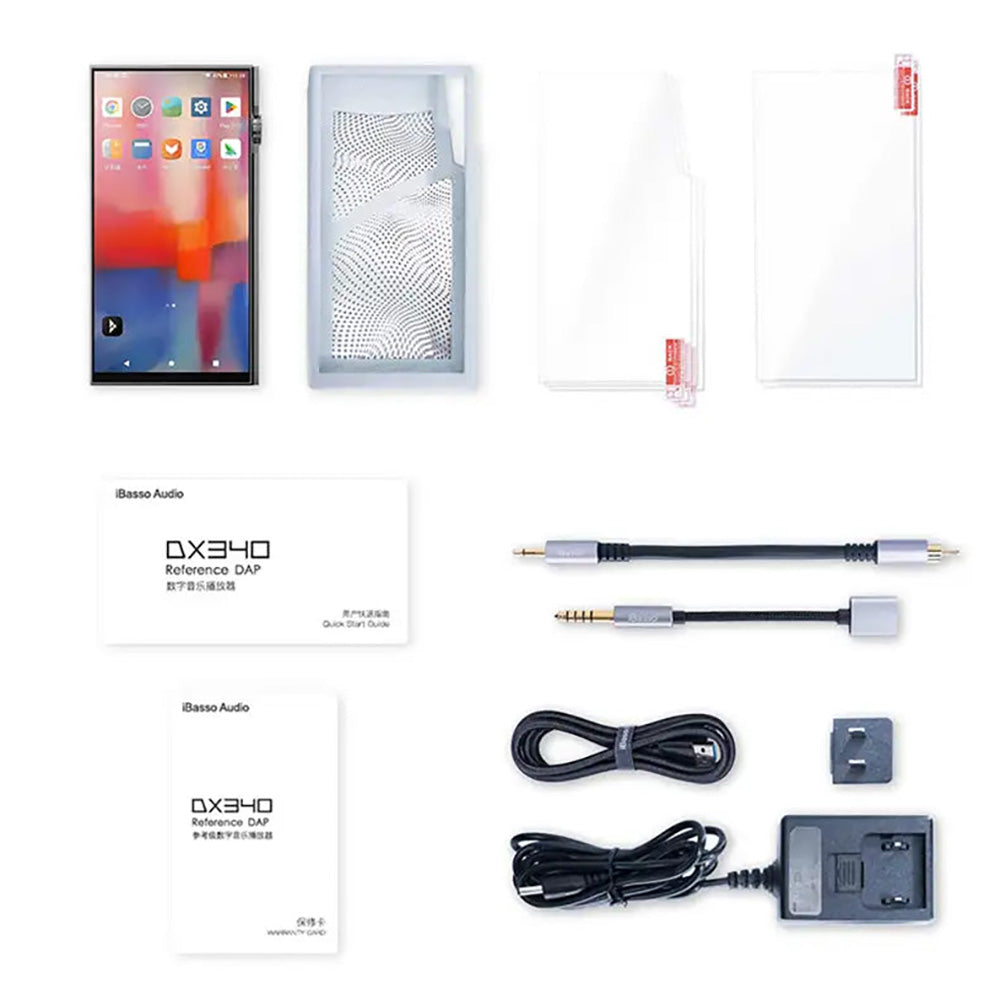

What’s Included
- iBasso DX340 Digital Audio Player
- AMP15 amplifier card
- 12V external power adapter
- USB-C, coaxial, and burn-in cables
- Genuine leather case
- Screen protector
- Warranty card and quick start guide
Specifications

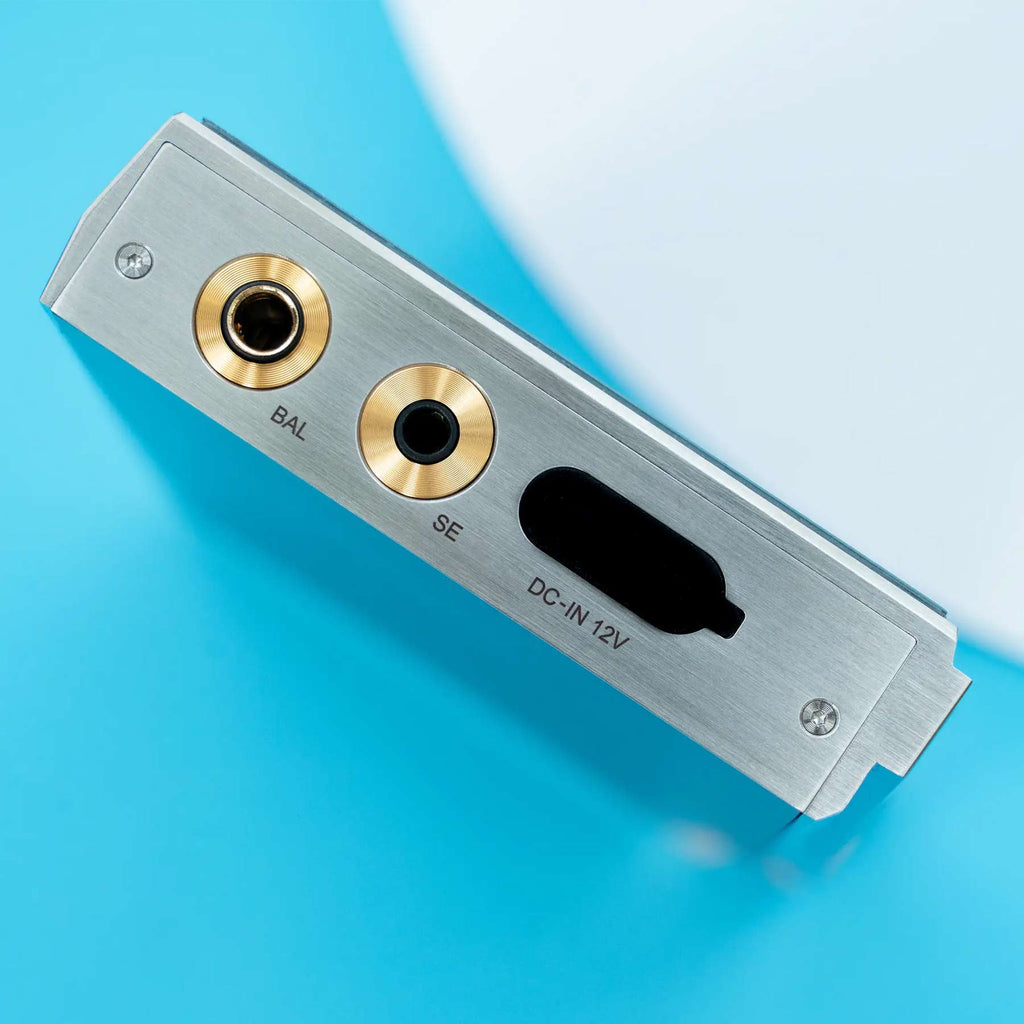

Headphone Output Specs (4.4mm Balanced)
- Output Level: 8.3Vrms (12V DC-IN), 6.23Vrms (battery)
- Output Power: 2150mW + 2150mW @32Ω, THD+N: -119dB (12V DC-IN)
- Output Power: 1200mW + 1200mW @32Ω, THD+N: <1% (battery)
- Frequency Response: 10Hz–22kHz (-0.7dB)
- SNR: 123dB
- Dynamic Range: 123dB
- THD+N: -119dB (A-wt, 600Ω load); -117dB (A-wt, 300Ω load); -106dB (A-wt, 32Ω load)
- Crosstalk: -140dB
Headphone Output Specs (3.5mm Single-Ended)
- Output Level: 4.2Vrms (12V DC-IN), 3.16Vrms (battery)
- Output Power: 550mW + 550mW @32Ω, THD < 1% (12V DC-IN)
- Output Power: 312mW + 312mW @32Ω, THD < 1% (battery)
- Frequency Response: 10Hz–22kHz (-0.7dB); 10Hz–40kHz (-2.2dB)
- SNR: 123dB
- Dynamic Range: 123dB
- THD+N: -117dB (A-wt, 600Ω load); -117dB (A-wt, 300Ω load); -104dB (A-wt, 32Ω load)
- Crosstalk: -138dB
Line Out Specs (4.4mm Balanced)
- Output Level: 2Vrms
- Frequency Response: 10Hz–22kHz (-0.7dB)
- SNR: 123dB
- Dynamic Range: 123dB
- THD+N: -119dB
- Crosstalk: -145dB
Line Out Specs (3.5mm Single-Ended)
- Output Level: 1Vrms
- Frequency Response: 10Hz–22kHz (-0.7dB); 10Hz–40kHz (-2.2dB)
- SNR: 118dB
- Dynamic Range: 118dB
- THD+N: -110dB
- Crosstalk: -135dB
