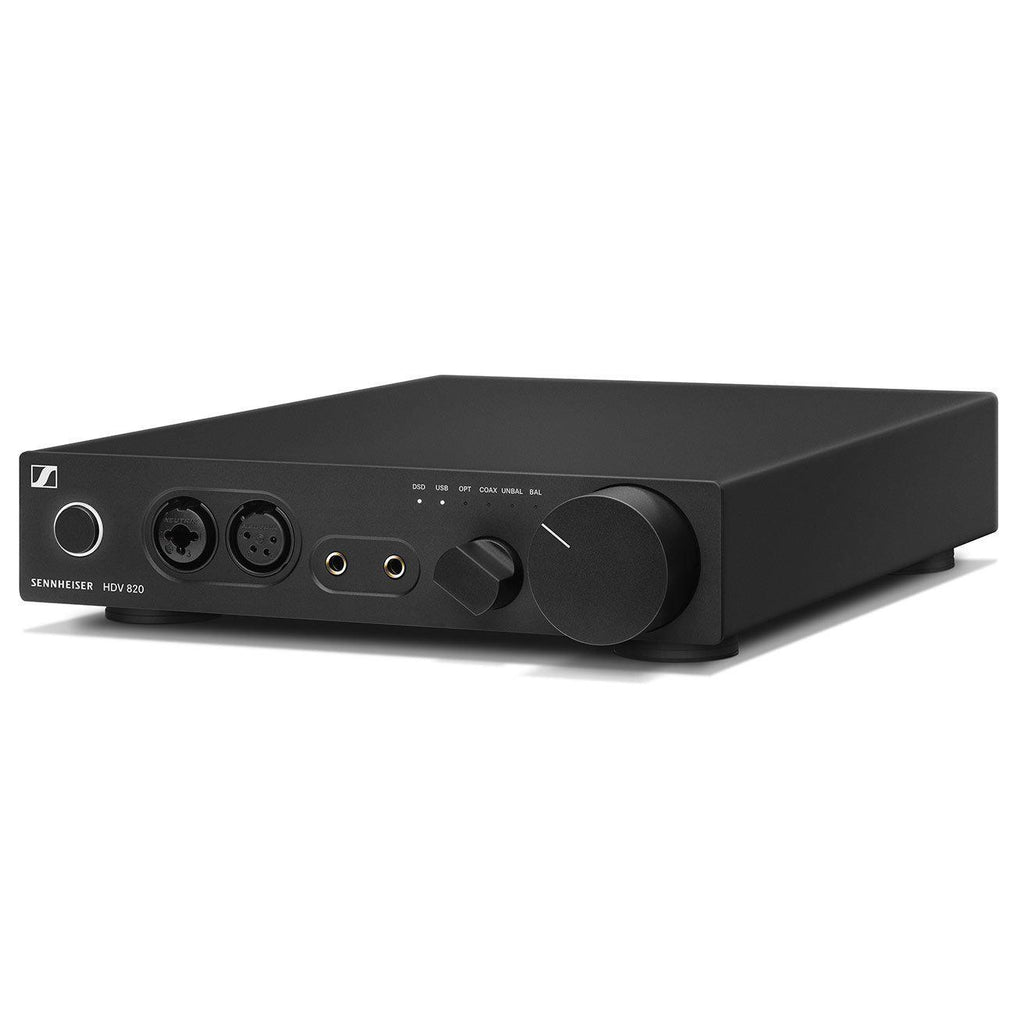

Angled front view of the Sennheiser HDV 820, showing the headphone outputs, input selector and volume knob

Sennheiser HDV 820 Headphone Amplifier / DAC

Join Waitlist

The Sennheiser HDV 820 combines a desktop DAC, headphone amplifier and balanced preamp output in one understated black chassis. It is a particularly natural fit for a Sennheiser HD 800-series system, with enough connection choices to bring a computer, disc transport and analog source together.

One listening hub for digital sources and an existing analog system.

  • ESS SABRE conversion with high-resolution USB playback
  • Balanced 4-pin XLR and two 4.4mm headphone outputs
  • 6.35 mm / 3-pin XLR combo headphone jack (unbalanced stereo)
  • USB, optical, coaxial, RCA and XLR inputs
Out of stock
USA flag badge

Ships in USA

Return or Exchange box badge

30 Day Returns

Fast shipping badge

Free 1 or 2 Day

Trust shield badge

Authorized Retailer

Sound and Headphone Pairing

What Hi-Fi?’s HDV 820 review, using the HD 800 S and Beyerdynamic T1, found a refined, informative presentation with fluid dynamics. It also noted that the sound lacked some bite. That is useful context if you prefer composed, smooth listening over an overtly aggressive presentation.

The HDV 820 is worth considering as a complete system partner rather than choosing it by DAC chip alone. With an HD 800-series headphone, you get convenient balanced connections and a matching desktop format. Headphones are sold separately, and a balanced output requires a correctly wired balanced headphone cable.

Sources, Outputs and Setup

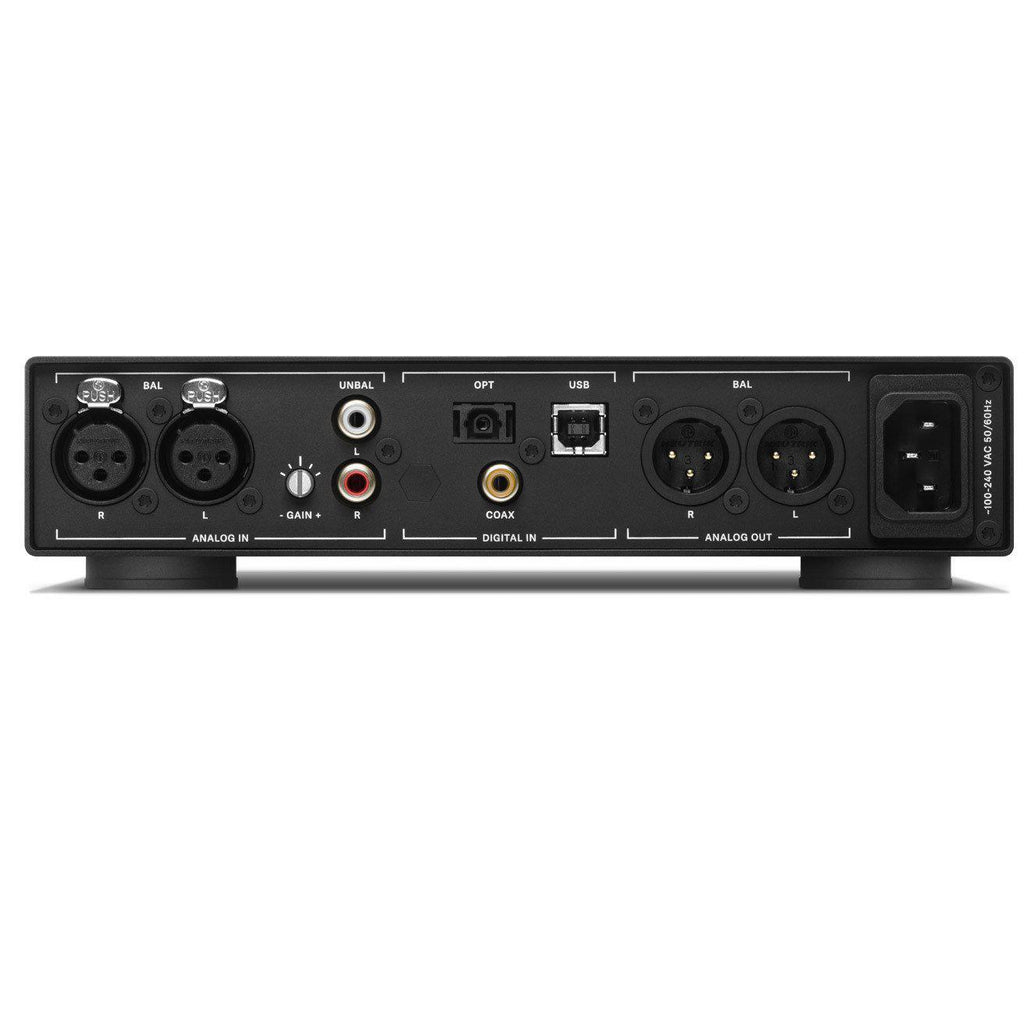

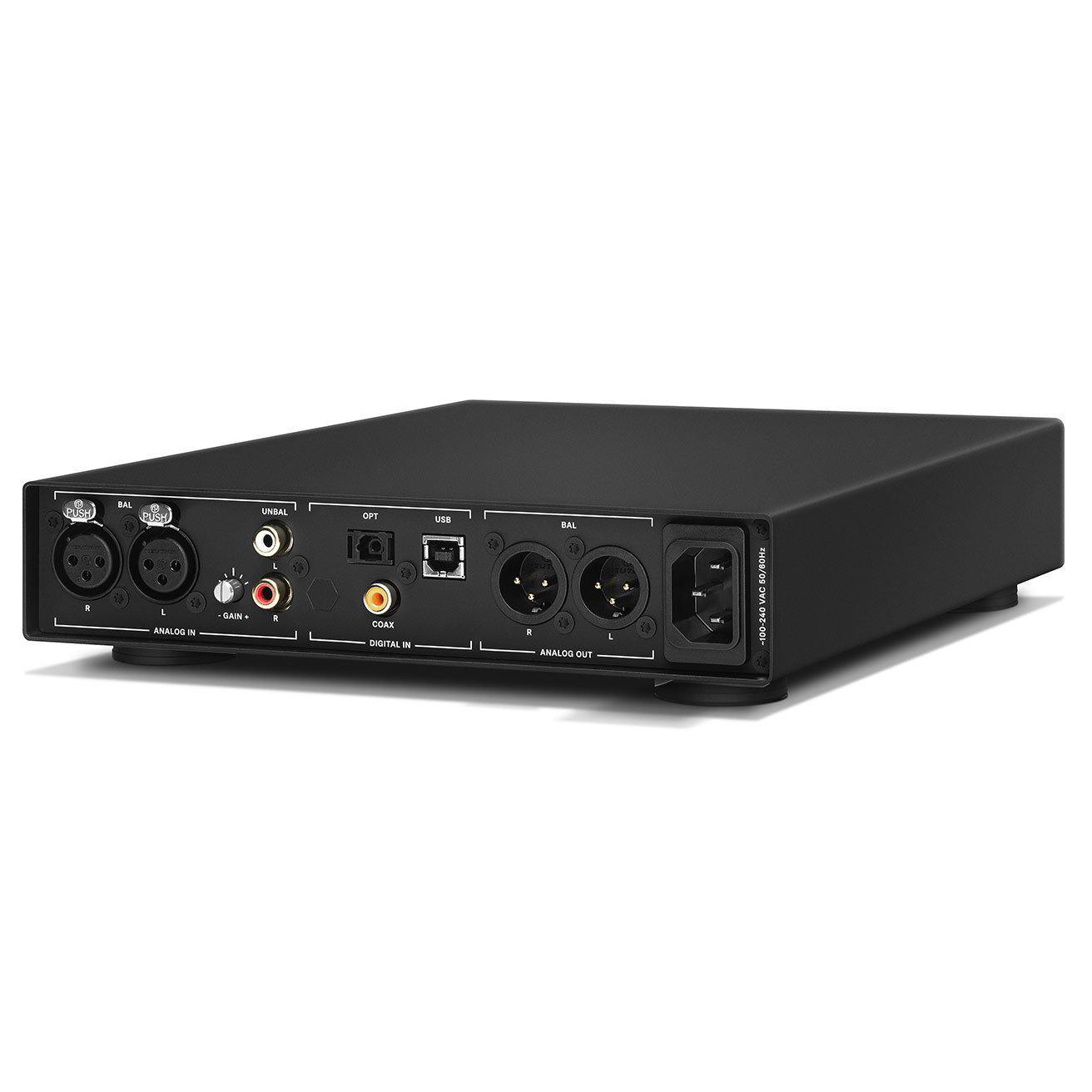

USB connects a computer to the internal DAC; optical and coaxial serve compatible digital transports. RCA and XLR inputs accept an existing analog source. Rear balanced XLR outputs connect onward to an amplifier or active speakers, not directly to passive speakers.

The front-panel selector makes switching among connected sources straightforward. Begin with low volume whenever changing headphones or inputs. The adjustable rear gain control applies to the unbalanced analog input, rather than acting as a universal gain setting for every source. Consult the manual for driver installation and source-specific format support.

Specifications

DAC ESS 9028PRO SABRE
USB PCM / DSD Up to 32-bit/384kHz PCM; DSD256 with compatible playback software
Digital inputs USB-B, optical S/PDIF, coaxial S/PDIF
Analog inputs / output Stereo RCA and XLR inputs; stereo XLR output
Headphone outputs Balanced: 4-pin XLR and two 4.4 mm sockets. Unbalanced stereo: one 6.35 mm TRS / 3-pin XLR combo jack (XLR pin 1 = shared ground, pin 2 = left, pin 3 = right).
Frequency response 10Hz–100kHz
THD Less than 0.001%
Dynamic range Above 115dB at 600Ω, A-weighted
Mains 100–240V, 50–60Hz
Consumption 12W nominal / 18W maximum
Size 224 × 44 × 306mm
Weight 2.39kg (current manufacturer specification; older manual lists approximately 2.25kg)

What's Included

  • HDV 820 headphone amplifier/DAC
  • Region-appropriate mains cable
  • Quick guide and safety guide
  • Microfiber cloth

Video Review

Sennheiser HDV 820 and HD 800 S Setup Review

Watch on YouTube

Manuals and Drivers

Overall rating: 5.0 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

I will definitely buy from HeadAmp again

"I paired this with my HD820s and couldn’t be happier after catching it at the price I was looking for. Some question and answer with HeadAmp’s team was fast and shipping was even faster!"

— Philip S. (5/5)

Sennehiser HDV Headphone Amplifier / DAC

"Just received amp and it sounds fantastic with Sennheiser 800 S Headphones . Since I also own other headphones a nice feature is having 4 different size Headphone inputs . I do use the XLR input for the Sennhiesers so I canuse other inputs for other headphones ."

— Gregory G. (5/5)
