STAX SRM-700S Electrostatic Headphone Amplifier
$3,400.00
The SRM-700S is an electrostatic headphone driver utilizing a fully discrete dual FET. The output of the J-FET and the large current emitter follower circuit are low noise. Accurate music reproduction is realized without missing any fine details.
Ships in USA
30 Day Returns
Free 1 or 2 Day
Authorized Retailer
A STAX First
New semiconductor driver with J-FET in the amplification stage. All semiconductor driver unit that has adopted custom-made low-noise dual FET at the first stage, and for the first time in STAX driver unit history J-FET has been employed at the second stage. The output of J-FET excellent in low-noise amplification as well as large current emitter follower circuit brings out the full performance of earspeakers. Even the music source with much high-frequency ingredients can easily be driven. The driver unit pursues an exact reproduction of musical details.
Features
• All-stage FET Configuration DC amplification
• Custom-Made Low Noise Dual FETs

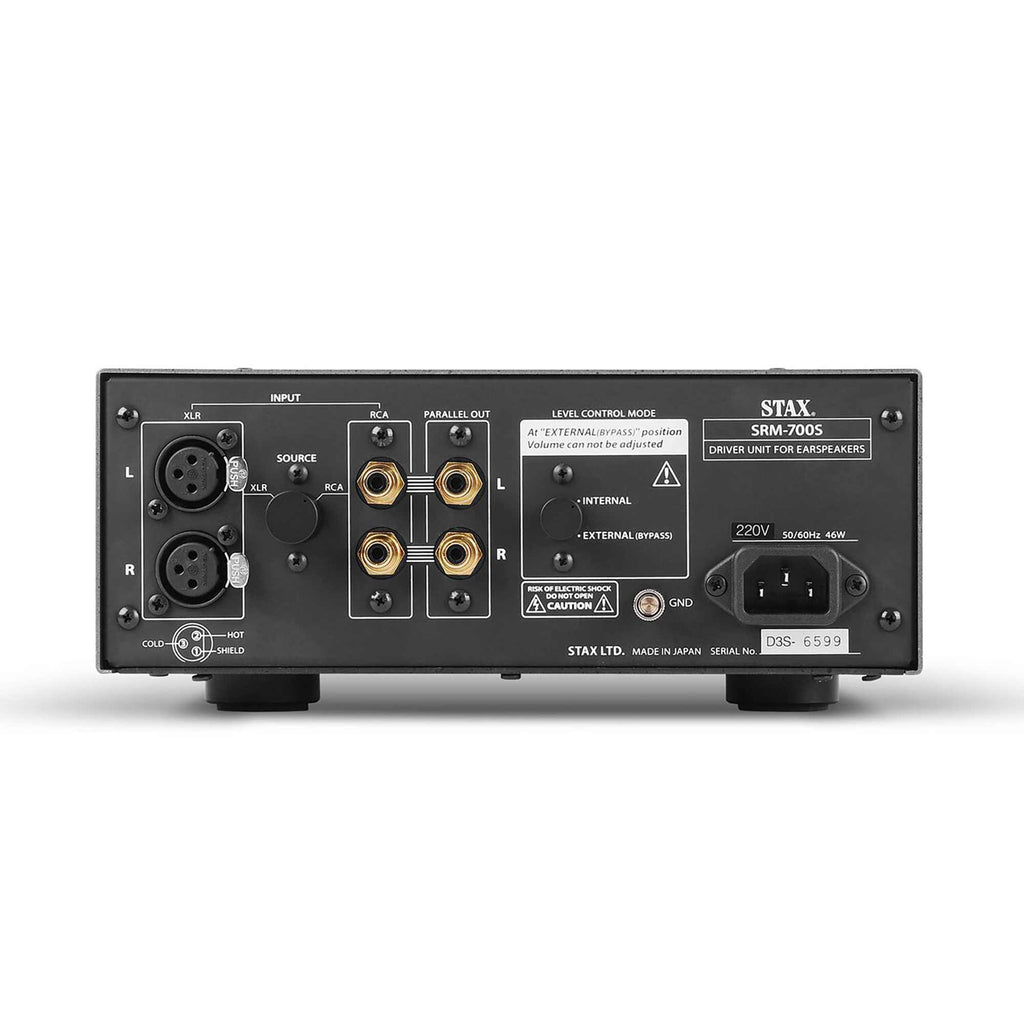

• RCA input terminals
• XLR 3-pin input terminals
• RCA parallel output terminals
• 46W Power Consumption
Technical Specs
Frequency Response :DC – 100kHz (with one SR-009S)
Harmonic Distortion :0.01% or less (1kHz/100Vrms output)
Imput Impedence: 50kΩ (RCA), 50kΩx 2 (XLR)
Gain: 60dB
Maximum output voltage :450Vrms (1kHz)
Bias Voltage :PRO 580V
Operating Conditions :32 to 95 degrees fahrenheit @<90% humidity
Dimensions :240W x 103 H x 393 D mm
Weight :6.3kg
