Our Take
The SRM-T8000 is a logical centerpiece for a dedicated STAX listening system when you want multiple analog sources, the option of external volume control and a hybrid amplifier from STAX itself. The tube input stage is not a reason to expect an overtly soft or syrupy presentation: the design is aimed at revealing what your source and earspeakers can do.
Sound & System Matching
In hi-fi+'s SRM-T8000 review, Alan Sircom emphasizes its precise midrange detail and ability to expose both the strengths and flaws of a recording. It is a useful choice for listeners who enjoy following individual musical lines, vocal inflections and the space around instruments.

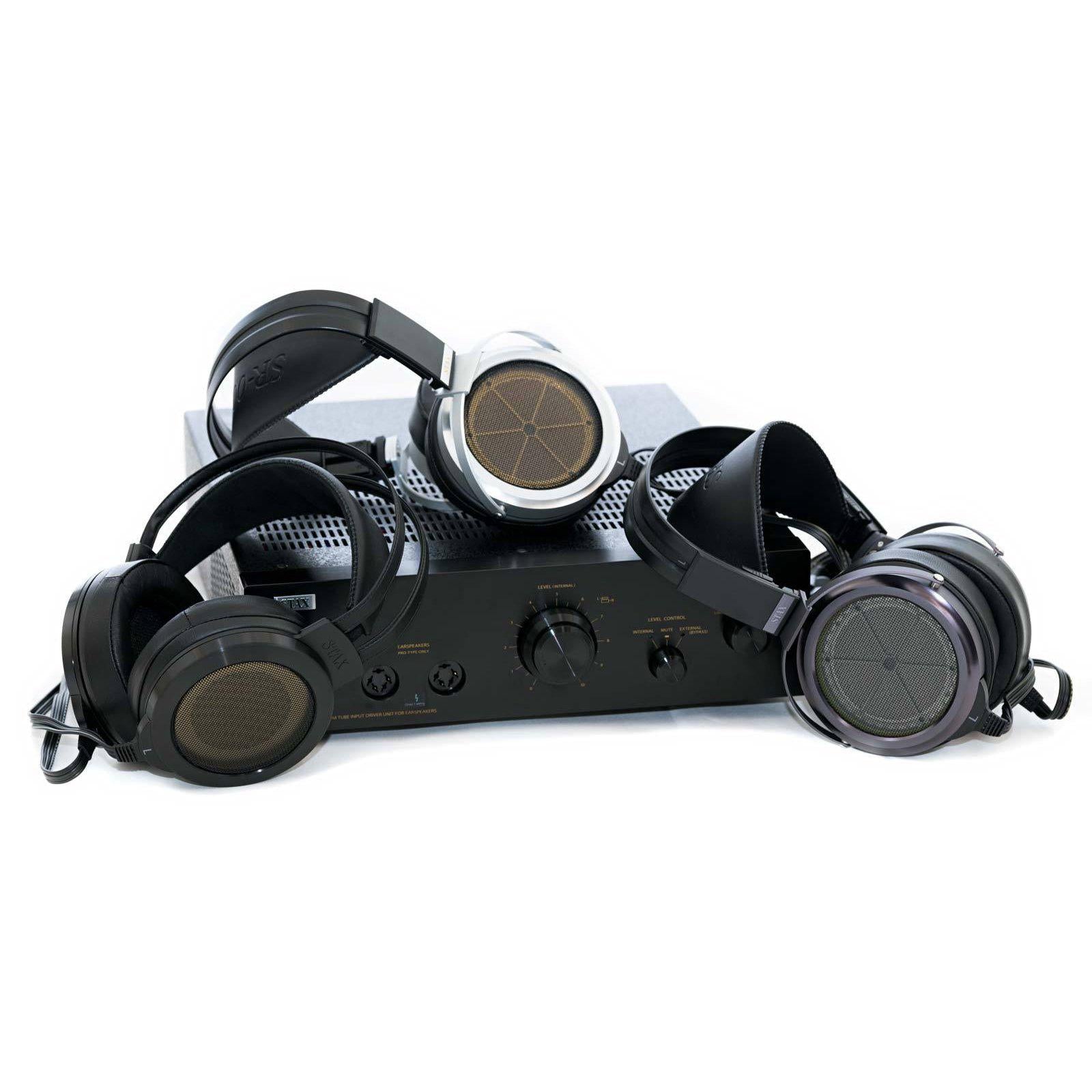

The earspeaker remains a major part of the result. For a more recent complete-system perspective, SoundStage! Solo's 2025 review evaluates the SR-X9000 with the SRM-T8000. Read those impressions as a system evaluation rather than a claim about the amplifier alone.
Analog Connections & Controls

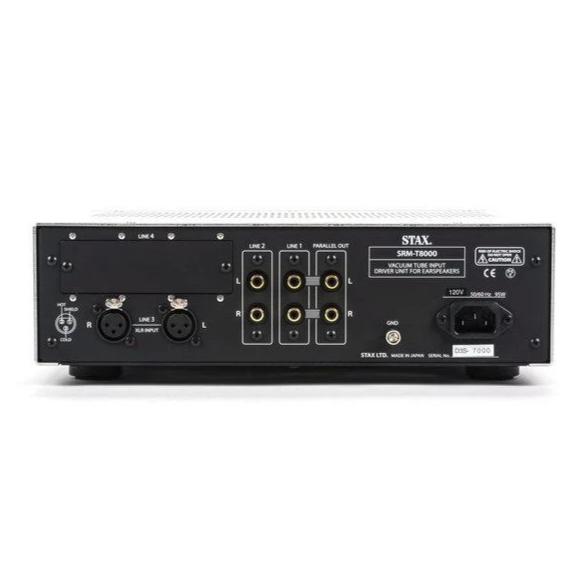

Connect a DAC, CD player or other line-level analog source to RCA or XLR. There is no built-in DAC, USB audio input or streaming platform. LINE4 is reserved for an optional expansion card; it is not an additional functioning input in the standard configuration.
The concentric volume knobs allow left/right level adjustment. PARALLEL OUT passes through the signal at LINE1; it is not a volume-controlled preamp output.
External bypass requires care: use EXTERNAL only with a source or preamplifier that has its own volume control. It bypasses the SRM-T8000's level control. Reduce the upstream level first and do not switch into bypass while wearing headphones.
Specifications
| Design |
6922 tube input / Class A solid-state output |
| Tubes |
2 × 6922 |
| Headphone connections |
2 × 5-pin STAX PRO-bias outputs |
| Bias |
580 V DC |
| Analog inputs |
2 × RCA stereo; 1 × XLR stereo |
| Frequency response |
1 Hz–115 kHz (+0/−3 dB, English owner's manual) |
| Gain |
60 dB (×1,000) |
| Rated input level |
100 mV for 100 V output |
| Maximum output voltage |
470 V RMS at 1 kHz |
| Harmonic distortion |
≤0.01% at 1 kHz |
| Input impedance |
RCA: 50 kΩ; XLR: 50 kΩ × 2 |
| Power consumption |
58 W without optional slot; 95 W maximum |
| Dimensions |
320 W × 103 H × 395 D mm, including protrusions |
| Weight |
7.3 kg |
| U.S. mains voltage |
120 V AC |
What's Included
- STAX SRM-T8000 driver unit in the selected finish
- Power cable
- RCA interconnect cable
- Owner's manual
Setup & Owner's Guide

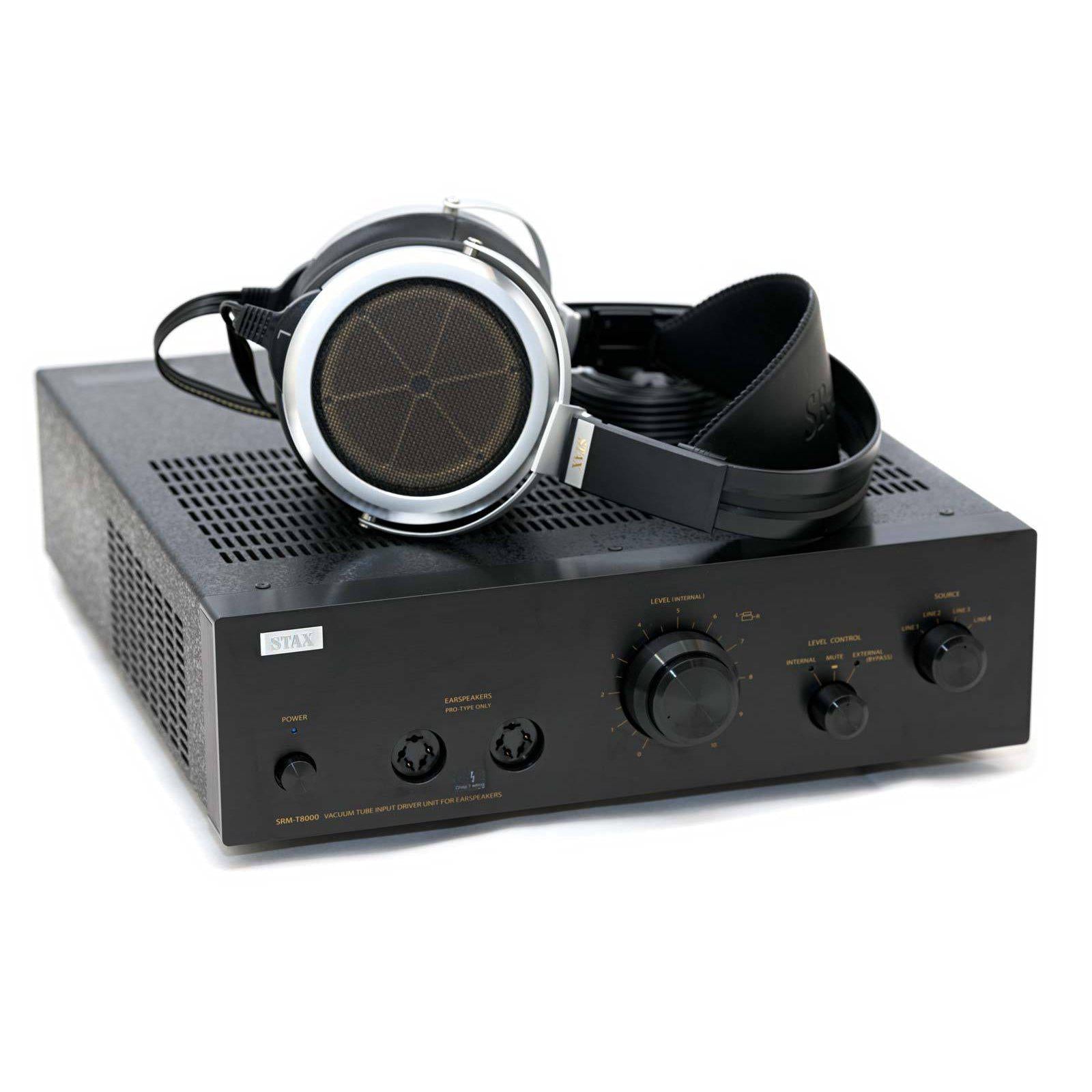

Keep the ventilation openings unobstructed, with at least 5 cm of clearance above and at the sides. Do not rest headphones on the amplifier during use, even though some system photographs show them together. Internal high-voltage circuitry and tube servicing should be handled by qualified service personnel.
STAX manufacturer product information
